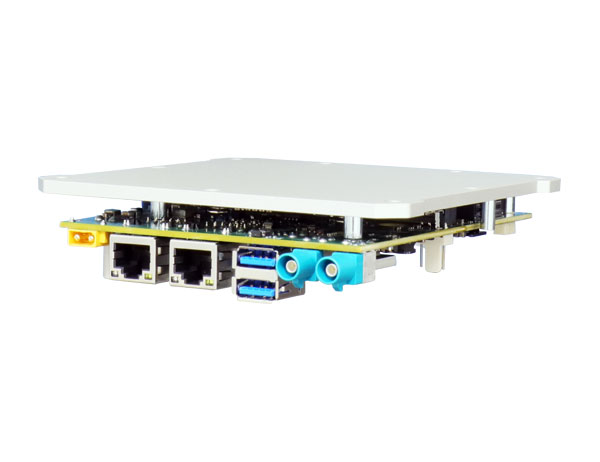

FLYC-300-JON8

Extremely lightweight and compact AI drone computer with NVIDIA® Jetson Orin™ NX

50 W
Fanless
Compact

Features

  • Extremely lightweight at only 297g (345g including case)
  • Up to 100 TOPS computing power thanks to NVIDIA® Jetson Orin™ NX
  • NVIDIA JetPack 5.1.1 pre-installed
  • 2x GMSL2 camera ports, CAN bus, GPIO, and UART
  • 2x GbE, 2x USB 3.2, 1x DisplayPort, 1x M.2 2230 SSD
  • Built-in UART and CAN interface for controller
  • Supports 4G/5G communication via micro SIM socket
  • Compatible with 4S-14S drone battery packs
  • Certified to MIL-STD-810H, CE/FCC Class A, and EN62368-1
Memory capacity
Housing
Product information "FLYC-300-JON8"

The FLYC-300 is an NVIDIA Jetson Orin NX-based mission computer specifically designed for drones and UAV applications. It is engineered to seamlessly work with flight controllers responsible for stabilizing and controlling drone flights. With an impressive 100 TOPS AI performance, the FLYC-300 combines versatile sensors to enable true drone autonomy and optimize applications such as autonomous navigation, obstacle avoidance, and object detection and tracking.

Main Features of the FLYC-300 and FLYC-300-JON8

  • Support for Versatile Sensors: The FLYC-300 meets the demands of RGB, hyperspectral, infrared, LiDAR, and 3D cameras, making it an ideal platform for environmental monitoring, infrastructure inspection, and real-time data processing.
  • Extensive Connectivity: Equipped with two Ethernet, two USB3.2, and two GMSL2 ports, the FLYC-300 provides versatile connection options for real-time analysis and data transmission.
  • Seamless Flight Control: The FLYC-300 communicates with the flight controller via configurable UART, Ethernet, and CAN ports, ensuring precise drone control.
  • Enhanced Communication: The system supports the installation of 5G and 4G modules for real-time transmission of images, videos, and data.
  • Flexible Power Input: Through the XT30 DC-IN connector, the FLYC-300 supports an input voltage range from 4S to 14S battery packs, providing maximum flexibility in power supply.
  • Ultra-Lightweight Design: Weighing only 297 grams, the FLYC-300 is easy to integrate and optimized for real-world applications.

Why the FLYC-300 and FLYC-300-JON8 Are the Ideal Drone Computers

The FLYC-300 takes unmanned systems to the next level by combining advanced image processing with a powerful NVIDIA Jetson-based AI platform. The FLYC-300-JON8 complements this functionality with additional connectivity options and optimized performance for specialized UAV applications. Together, they provide the perfect solution for modern drone operations.

Choose the FLYC-300 or FLYC-300-JON8 to elevate your UAV projects and benefit from a robust, reliable, and powerful platform.

Technical details

Add-ons: M.2 3052 B key, SIM Socket
CPU: NVIDIA® Jetson Orin™ NX
Certificates: CE/FCC Class A, according to EN 55032 & EN 55035, EN62368-1, MIL-STD-810H, Method 514.6, MIL-STD-810H, Method 516.6
DC Input: XT-30
Ethernet: 2.5G, Gigabit
Ethernet Ports: 1x, 2x
Humidity: 10% ~ 90% (non-condensing)
Memory capacity: 8 GB
Mounting: Wall-mount
Operating Temperature: -25°C ~ 70°C
Operating system: NVIDIA JetPack 5.1.1 (vorinstalliert)
Power supply: 12 ~ 60V DC
Storage: M.2 2230 M Key
USB: USB-C, USB 3.2 Gen 1, USB 3.2 Gen 2
USB Ports: 1x, 2x
Video: DisplayPort
Downloads

Suitable cameras

AC-ISX031-H190
  • SONY ISX031 CMOS sensor with integrated ISP
  • 1920 x 1536 uncompressed UYVY video output
  • IP67 + IP69K waterproof on the lens side
  • Improved edge focus and lens centering through 5-axis active adjustment
  • Object distance 0.5 m to infinity
AC-ISX031-H60
Here is the translation of the text from German to English:
  • SONY ISX031 CMOS sensor with integrated ISP
  • 1920 x 1536 uncompressed UYVY video output
  • IP67 + IP69K waterproof on the lens side
  • Improved edge focus and lens centering through 5-axis active adjustment
  • Object distance 3.1 m to infinity
AC-ISX031-H120
  • SONY ISX031 CMOS sensor with integrated ISP
  • 1920 x 1536 uncompressed UYVY video output
  • IP67 + IP69K waterproof on the lens side
  • Improved edge focus and lens centering through 5-axis active adjustment
  • Object distance 1 m to infinity
AC-IMX390-H60
  • SONY IMX390 CMOS Sensor and GEO SEMI GW5200 ISP
  • 1920x1080 uncompressed UYVY video output
  • IP67 + IP69K waterproof on the lens side
  • Enhanced edge focus and lens centering via 5-axis active adjustmen
AC-IMX390-H120
  • SONY IMX390 CMOS Sensor and GEO SEMI GW5200 ISP
  • 1920x1080 uncompressed UYVY video output
  • IP67 + IP69K waterproof on the lens side
  • Enhanced edge focus and lens centering via 5-axis active adjustmen
AC-IMX490-H120
  • SONY IMX490 CMOS sensor and GEO SEMI GW5300 ISP
  • 2880x1860 uncompressed UYVY video output
  • IP67 + IP69K waterproof on the lens side
  • Improved edge focus and lens centering through 5-axis active adjustment
  • Object distance 2.5 m to infinity
AC-IMX490-H60
  • SONY IMX490 CMOS sensor and GEO SEMI GW5300 ISP
  • 2880x1860 uncompressed UYVY video output
  • IP67 + IP69K waterproof on the lens side
  • Improved edge focus and lens centering through 5-axis active adjustment
  • Object distance 7 m to infinity
AC-IMX490-H30
  • SONY IMX490 CMOS sensor and GEO SEMI GW5300 ISP
  • 2880x1860 uncompressed UYVY video output
  • IP67 + IP69K waterproof on the lens side
  • Improved edge focus and lens centering through 5-axis active adjustment
  • Object distance 28 m to infinity
