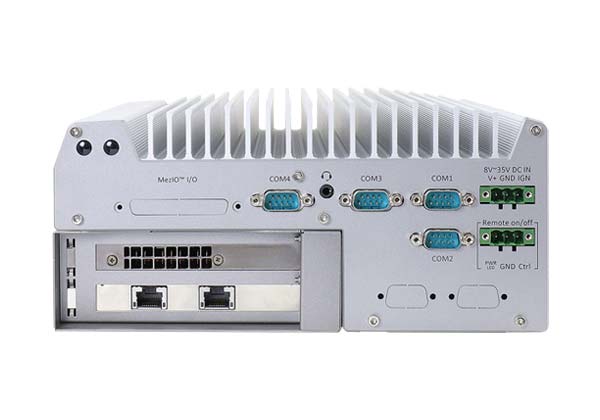

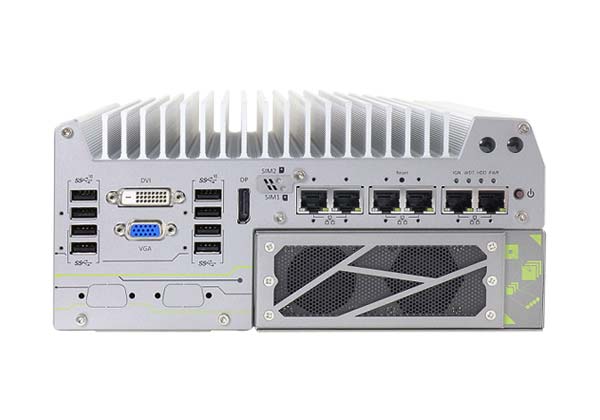

Nuvo-7166GC-PoE
Rugged AI inference platform with support for NVIDIA® L4/T4/A2 GPU, PoE+, Intel® 9th/8th Gen Core™ CPU.
Features
- Intel® 9th Gen/8th Gen Core™ CPU
- Up to 64 GB DDR4 RAM
- Specifically designed for NVIDIA® L4/T4/A2 GPUs
- 6x GigE Ethernet ports, 4x PoE+
- 2x 2.5" SSD (RAID 0/1), 1x M.2 2280 NVME
- 4x USB 3.1 Gen2, 4x USB 3.1 Gen1
- Wide temperature range from -25 ~ 60°C
- Certified according to MIL-STD-810G and CE/FCC Class A
The Nuvo-7166GC is Neousys' robust AI inference platform with 2 PCIe slots. These can each accommodate an NVIDIA® L4/T4/A2 GPU for faster inference calculations, allowing the platform to deliver up to 242 TFLOPS in FP16 benchmarks and 485 TOPs in INT8 benchmarks for real-time inference based on a trained neural network model. With its Intel® 9th Gen/8th Gen Coffee Lake Core™ processor (6/8 cores) and 64 GB DDR4-2666 RAM, the platform offers a particularly balanced combination of CPU, GPU, and memory performance.
The Nuvo-7166GC Edge AI Platform is capable of effectively dissipating the heat generated by the NVIDIA L4/T4/A2 GPU. The Nuvo-7166GC uses Neousys' patented cassette module, which features a specially designed ventilation channel that directs air from the intake to the passive heat sink of the NVIDIA® L4/T4/A2 GPU. In case you equip the platform with a second high-performance PCIe card, the cassette module also has a second fan to ensure proper airflow. The cooling design guarantees operation at ambient temperatures of up to 60°C, even under continuous full load of both CPU and GPU.
The system also features the latest I/O technologies, enhancing the flexibility, functionality, and overall performance of the system. It includes an M.2 NVMe interface for ultra-fast disk access, as well as USB 3.1 Gen2, GbE, and PoE ports for data transmission. Additionally, the cassette module offers an extra Gen3 x8 PCIe slot for installing a high-performance PCIe card. Alternatively, a variety of sensor and image capture cards are available for this slot.
With its combination of phenomenal inference performance, powerful CPU, and expansion capabilities, the Nuvo-7166GC is the perfect rugged platform for versatile edge AI applications.
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, MezIO® Port, PCIe x16 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Chipset: | Intel® Q370 |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Intel AMT: | AMT 12.0 |
| Internal Graphics: | Intel® UHD Graphics 630 |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | DIN-rail mount (optional), Wall-mount |
| Number of graphics cards: | 1x graphics card |
| Operating Temperature: | -25°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE+ Ports: | 4x RJ45 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 3-pin pluggable terminal block for remote control |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | TPM 2.0 |
| USB: | USB 3.1 Gen 1, USB 3.1 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Video: | DVI-D, DisplayPort, VGA |
