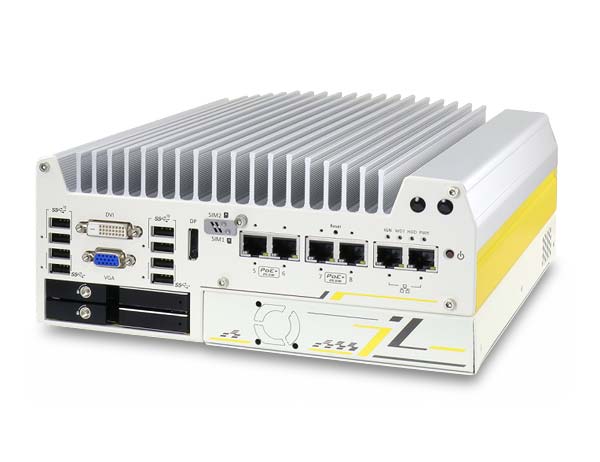

Nuvo-7100VTC

Intel® 9th/ 8th-Gen Core™ i7/i5/i3 in-vehicle fanless embedded computer with EN50155 certification

Fanless
Shock resistant
PoE

Features

  • Intel® 9th/8th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
  • Up to 64GB DDR4-2666 RAM
  • 8x USB 3.1, 1x VGA, 1x DVI, DisplayPort
  • 4x M12 PoE+ Gigabit Ethernet ports
  • 1x CAN 2.0 port, 4x isolated DI and 4x isolated DO
  • 2x 2.5’ SSD, 1x M.2 SSD, 3x miniPCIe
  • E-Mark and EN 50155/ EN 45545 certification
PoE+ Ports
Add-ons
Product information "Nuvo-7100VTC"

Nuvo-7100VTC is the latest rugged in-vehicle controller featuring purpose-built set and effortless 6-core architecture and 64GB DDR4 memory that gets a significant performance increase over previous generations for versatile in-vehicle applications.

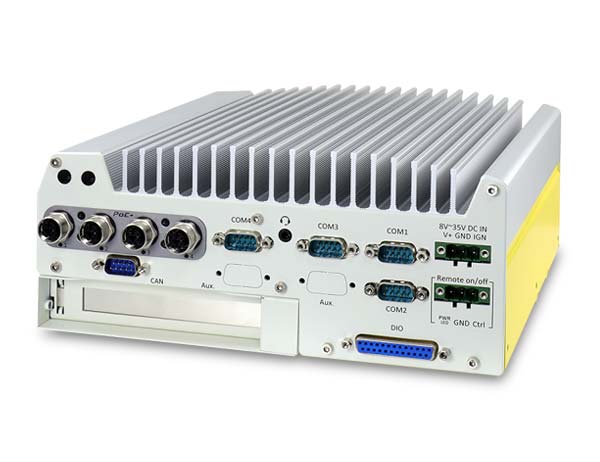

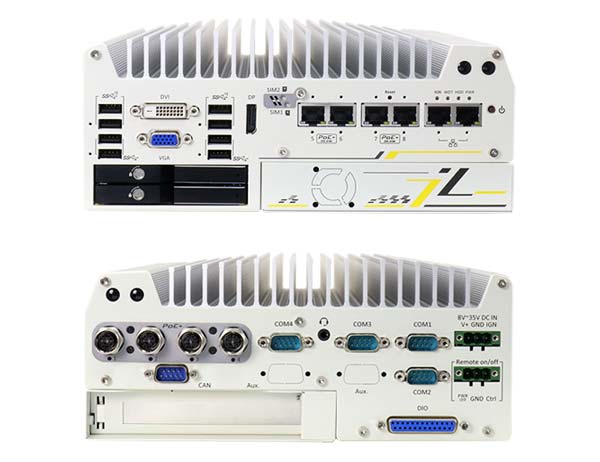

Nuvo-7100VTC provides flexibility to support a range of peripherals and connections. It offers four 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on computer I/Os like Gigabit Ethernet, USB 3.1 Gen1 and USB 3.1 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity are essential for modern day in-vehicle applications and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G/ 4G, WIFI, GPS, and CAN module for communication. Additionally, there is a 4G cellular module option that is certified to work with renowned US telecommunications company which can save you implementation time and cost.

On top of all that, Nuvo-7100VTC also features isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155/ EN 45545. The Nuvo-7100VTC is the perfect solution with extraordinary reliability for various in-vehicle application needs.

Technical details

Add-ons: Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key
Audio: 1x 3,5mm jack mic in & speaker out
CPU: Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3
CPU Generation: 8th generation, 9th generation
CPU Socket: LGA1151
Certificates: CE/FCC Class A, according to EN 55022 & EN 55024, E-Mark, EN50155, IEC61373:2010, Category 1, Class B
Chipset: Intel® Q370
DC Input: 3-pin pluggable terminal block
DIO: 4-CH isolated DI und 4-CH isolated DO
Ethernet: Gigabit
Ethernet Ports: 1x, 2x, 3x, 4x
Humidity: 10% ~ 90% (non-condensing)
Ignition control: Yes
Intel AMT: AMT 12.0
Internal Graphics: Intel® UHD Graphics 630
Memory: 1x DDR4 Slot, 2x DDR4 Slots
Memory capacity: 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Mounting: DIN-rail mount (optional), Damping brackets, Wall-mount
Operating Temperature: -40°C ~ 70°C
Operating system: Linux, Windows 10, Windows 10 IoT
PoE: Yes
PoE+ Ports: 4x M12 PoE+
PoE-Standard: IEEE 802.3at (PoE+)
Power supply: 8 ~ 35V DC
RAID: RAID 0, RAID 1
Remote: 3-pin pluggable terminal block for remote control, PWR LED Output
Serial Ports: RS-232, RS-422, RS-485
Storage: 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME
TPM: TPM 2.0
USB: USB 3.1 Gen 1, USB 3.1 Gen 2
USB Ports: 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x
Video: DVI-D, DisplayPort, VGA
