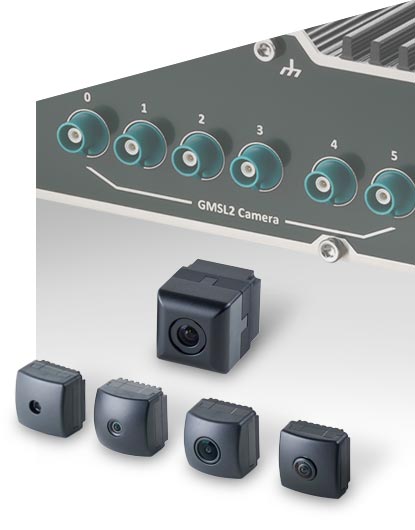

GMSL2 Camera: Optimal Support with Neousys NVIDIA® Jetson Platforms
The NVIDIA® Jetson platforms from Neousys are the ideal solution for integrating GMSL2 cameras into demanding applications such as ADAS, remote control, autonomous mobile robots (AMR), and autonomous vehicles. With support for GMSL/GMSL2 automotive cameras, these platforms offer powerful image processing capabilities specifically designed for industrial requirements.
| Typ | Modell | Bestellung mit Neousys | NRU-230V-AWP | NRU-161V-AWP | NRU-171V-PPC | NRU-51V+ | FLYC-300 | PCIe-GL26 |
|---|---|---|---|---|---|---|---|---|
| GMSL2 2D Camera | Neousys AC-IMX390 | Y | ★ | ★ | ★ | ★ | ★ | ★ |
| Neousys AC-IMX490 | Y | ★ | ★ | ★ | ★ | ★ | ✕ | |
| Neousys AC-ISX031 | Y | ★ | ★ | ★ | ★ | ★ | ▲ | |
| Neousys AC-AR0233 | Y | ★ | ★ | ★ | ★ | ★ | ★ | |
| GMSL2 3D Camera | Intel RealSense D457 | N | â–² | â–² | â–² | â–² | â–² | â–² |
| Stereolabs ZED X | N | â–² | â–² | â–² | â–² | â–² | â–² |
â–² camera support on a project basis
✕ Not supported
Advantages of GMSL2 Camera Integration
- IP67 water resistance for use in harsh environments.
- High Dynamic Range (HDR) with over 120 dB for detailed images in challenging lighting conditions.
- Automatic White Balance (AWB) for optimal color representation.
- LED Flicker Mitigation (LFM) to reduce image distortion caused by artificial lighting.
Thanks to these features, GMSL2 cameras on Jetson platforms deliver clear and high-quality images – whether in bright sunlight, overcast skies, or complete darkness.
Pre-Installed Drivers for GMSL2 Cameras
Neousys offers a variety of GMSL2 cameras (2 MP to 8 MP) with pre-installed drivers directly integrated into the system image. This ensures seamless integration into various industrial applications. The supported models include both 2D and 3D cameras, perfectly tailored to the needs of modern image processing.
Optimized Hardware for GMSL2 Cameras
The NRU series from Neousys provides powerful computing platforms that:
- Include pre-installed drivers for multiple GMSL2 camera models.
- Enable easy and reliable setup.
- Support both 2D and 3D cameras with maximum efficiency.
With this combination of robust hardware design and comprehensive camera compatibility, Neousys is the first choice for integrating GMSL2 cameras into professional applications.
AC-IMX390 Series
The AC-IMX390 Series is equipped with the high-quality Sony IMX390 CMOS sensor and delivers a resolution of 1920x1080 at 30fps. It is ideal for demanding applications, thanks to innovative technologies such as LED Flicker Mitigation (LFM).
This camera is certified to protection classes IP67 and IP69K, offering maximum resistance to water and dust. With an extended operating temperature range of -40°C to 85°C, it is also suitable for extreme environments.
Additional features include a male FAKRA connector for secure connections and precise active alignment for optimal image quality. The camera is delivered without a lens cap and offers versatile usage.
- SONY IMX390 CMOS Sensor and GEO SEMI GW5200 ISP
- 1920x1080 uncompressed UYVY video output
- IP67 + IP69K waterproof on the lens side
- Enhanced edge focus and lens centering via 5-axis active adjustmen
- SONY IMX490 CMOS sensor and GEO SEMI GW5300 ISP
- 2880x1860 uncompressed UYVY video output
- IP67 + IP69K waterproof on the lens sideÂ
- Enhanced edge focus and lens centering via 5-axis
active adjustmen
AC-IMX490 Series
The AC-IMX490 Series features the advanced Sony IMX490 CMOS sensor and delivers an impressive resolution of 2880x1860 at 30fps. With integrated LED Flicker Mitigation (LFM), it is perfectly suited for demanding image processing applications.
This camera is certified to protection classes IP67 and IP69K, providing optimal protection against water and dust. The extended operating temperature range of -40°C to 85°C makes it ideal for use in extreme environments.
Featuring a male FAKRA connector for reliable connections and precise active alignment, the camera offers top-tier performance. It is delivered without a lens cap and is highly versatile in its applications.
AC-ISX031 Series
The AC-ISX031 Series is equipped with the Sony ISX031 CMOS sensor and features an integrated Image Signal Processor (ISP). With a resolution of 1920x1536 at 30fps, it delivers sharp and detailed images for a wide range of applications.
The camera meets protection classes IP67 and IP69K, making it highly resistant to water and dust. Its extended operating temperature range of -40°C to 85°C ensures suitability for demanding environments.
Equipped with a male FAKRA connector and precise active alignment, the AC-ISX031 Series guarantees maximum reliability and image quality. The camera is delivered without a lens cap, offering maximum flexibility for various use cases.
- SONY ISX031 CMOS-Sensor mit integriertem ISPÂ
- 1920 x 1536 unkomprimierter UYVY-VideoausgangÂ
- IP67 + IP69K wasserdicht auf der ObjektivseiteÂ
- Verbesserter Randfokus und Objektivzentrierung durch 5-Achsen-AktiveinstellungÂ
