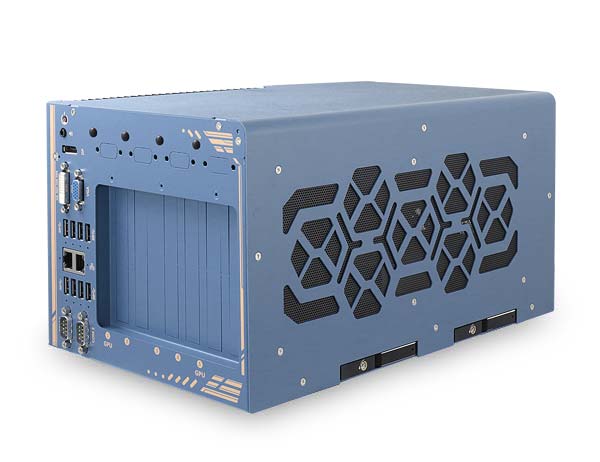

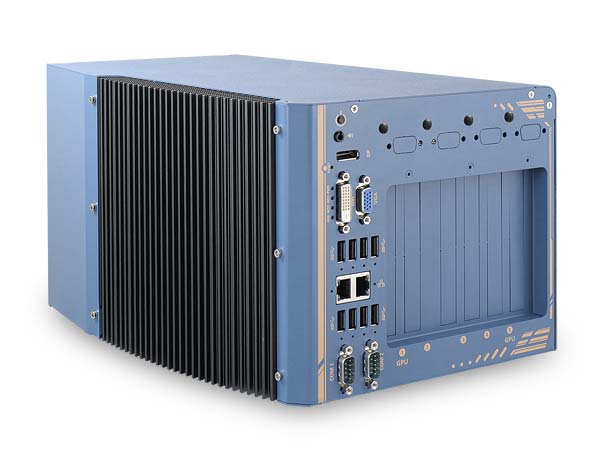

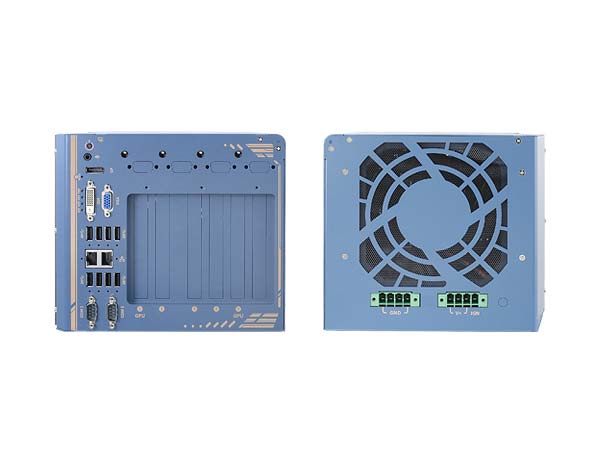

Nuvo-8208GC
Robust Edge AI GPU Computing Platform with Support for Two NVIDIA® RTX GPUs
Features
- Supports two NVIDIA® RTX graphics cards up to 250W
- Intel® Xeon® E- or 9th/8th Gen Core™ i7/i5 CPU
- Up to 128 GB DDR4-2133 RAM (4 SODIMM slots)
- 2 x16 and 2 x8 PCIe slots (Gen3) for expansion cards
- 8 – 35V wide-range input with built-in ignition control
- Suitable for harsh environments with temperatures from -25 °C to 60 °C
The Nuvo-8208GC industrial PC is the first edge AI GPU platform on the market designed for dual GPUs, equally suited for industrial applications and equipped with special features for automotive use. The platform is optimized for utilizing two high-end NVIDIA® RTX 30 graphics cards (250 W power each) and delivers a colossal computing performance of up to 28 TFLOPS when benchmarking with FP32 for new GPU-accelerated edge computing applications, such as autonomous vehicles, visual inspections, and surveillance/security technology.
The Nuvo-8208GC edge AI computing platform is powered by Intel® Xeon® E- or 9th/8th Gen Core™ CPUs (8 cores/16 threads), paired with the workstation-proven Intel® C246 chipset, which supports up to 128 GB of DDR4 memory (ECC or non-ECC). The system features two hot-swappable 2.5-inch drive bays for easy replacement of hard drives and SSDs, and provides optimal drive performance with its M.2 2280 NVMe socket. The front-accessible GbE and USB 3.1 ports (Gen1/Gen2) are protected from accidental disconnection with a screw-locking mechanism. In addition to the two x16 PCIe slots for the GPUs, the Nuvo-8208GC includes two additional x8 PCIe slots and one x4 PCIe slot, allowing for expanded functionality for data acquisition, analytics, or data exchange applications.
The Nuvo-8208GC features a brand-new power supply concept with input voltages ranging from 8 to 35 V DC, capable of meeting the significant power requirements of both 250 W GPUs. The platform includes built-in ignition control, allowing it to be installed in vehicles without further preparation and powered via the vehicle's onboard system. Mechanical features of the Nuvo-8208GC platform include Neousys' patented heat dissipation concept*, vibration-dampening mounting brackets*, and a pressure bar for GPUs (patent pending), ensuring the platform remains operational under extreme conditions and in various environments.
The Nuvo-8208GC is Neousys' response to the ever-increasing demand for TFLOPS in industrial PCs and GPU platforms. This industrial PC brings industrial-grade concepts for power supply, heat dissipation, and well-thought-out mechanics to edge AI inference applications, extending their traditional application scenarios from laboratory computing environments to practical applications where robust and reliable solutions are required.
Technical details
| Add-ons: | 2x PCIe x16 Gen3 Slot, Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, PCIe x16 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Xeon E, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Chipset: | Intel® C246 |
| DC Input: | 2x 4-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Intel AMT: | AMT 12.0 |
| Internal Graphics: | Intel® UHD Graphics 630 |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots, 3x DDR4 Slots, 4x DDR4 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB |
| Mounting: | Damping brackets |
| Operating Temperature: | -25°C ~ 50°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| Power supply: | 8 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | TPM 2.0 |
| USB: | USB 2.0, USB 3.1 Gen 1, USB 3.1 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x |
| Video: | DVI-D, DisplayPort, VGA |
