Nuvo-11000 series
Nuvo-11000 series
- Supports Intel® Core™ Ultra 200 Series 24C/ 24T 35W/ 65W LGA1851 CPU
- Rugged, -25°C to 70°C fanless operation
- Up to 5x 2.5GbE and 1x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
- Up to 8x USB 3.2 Gen2 ports
- 4-channel isolated digital inputs (DI) and 4-channel isolated digital outputs (DO)
- 1x optional 10GBASE-T Ethernet port
- Expansion cassette for PCIe add-on card accommodation
- MezIO® interface for easy function expansion

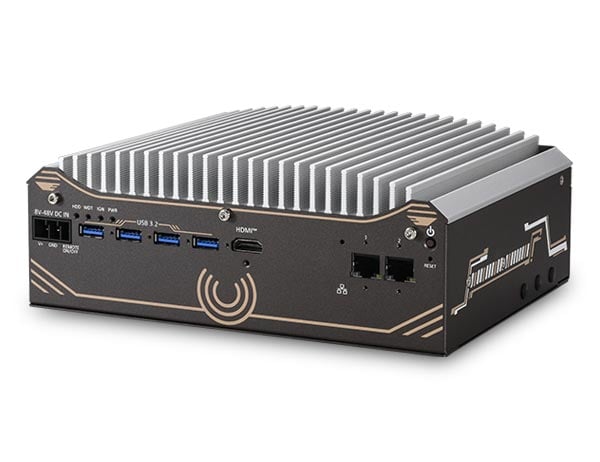

Nuvo-11501
- Intel® Core™ Ultra 200S 35W / 65W LGA1851 CPU
- Up to 64GB DDR5-6400 RAM
- 1x M.2 2280 Gen4x4 NVMe, 1x 2.5‘ / 3.5’ SATA HDD/SSD
- 2x 2.5 GbE, 4x USB 3.2
- 1x DisplayPort, 1x HDMI
- Fanless operation at -10 ~ 60 °C
- 8 - 48V wide range input
- Compact dimensions of 212 x 165 x 80 mm
- CE/FCC Class A and MIL-STD-810H certifications
Nuvo-11500 series
- Intel® Core™ Ultra 200 CPU
- Up to 48GB DDR5 RAM
- 1x M.2 NVME, 1x 2.5" SSD
- 4x 2.5G Ethernet with optional PoE+ function
- 4x USB 3.2 Gen 1 ports
- 8-48V wide-range input with ignition control
- Compact low-profile design
- Fanless operation at -25 - 60 °C
- CE/FCC Class A & MIL-STD 810H certified
