DIN-rail Industrial PC

What is a DIN-Rail PC or DIN-Rail-Mountable PC?

A DIN-Rail PC, also known as a DIN-Rail-Mountable PC, is a compact, robust industrial PC specifically designed for use in industrial environments. The term "DIN rail" is derived from the standardized mounting rail used for installing electrical and electronic components in control cabinets. These rails, often made of steel or aluminum, are available in sizes 35x15 mm and 35x7.5 mm and comply with the DIN EN 50022 standard.

DIN rail
Figure 1: Sketches of the most commonly encountered DIN rails of sizes 35x15 mm (left) and 35x7.5 mm (right).
The short designation for these rails is now TH 35 (previously TS 35).


DIN-Rail Mounting of Industrial PCs

DIN-Rail PCs are designed to be mounted directly onto DIN rails, enabling easy integration into existing systems. Many industrial PCs offer optional mounting accessories for DIN-rail installation.

The more compact and lightweight an industrial PC is, the better it is suited for DIN-rail mounting. This minimizes the tipping moment, as seen in the POC-400 shown in the image.

The manufacturer's manual explains how the device can be easily snapped into a DIN rail, as shown in Figure 3.

Figure 3, left: Easy snapping of an industrial PC onto a DIN rail. Right: POC-400 on a DIN rail, with connectors on top and front.

Industrial PCs with DIN-rail mounting are typically compatible with both the deeper (15 mm) and the flatter (7.5 mm) variants of DIN rails.

Example: The Neousys POC-400

An example is the Neousys POC-400, equipped with a side-mounted DIN-rail clip. With compact dimensions of 56.5x107.5x153.3 mm and a weight of 960 grams, this model is ideal for DIN-rail mounting, as its low weight ensures minimal tipping moment.

Neousys POC-400 with DIN-rail clip

Figure 2: Industrial PC Neousys POC-400 with side-mounted DIN-rail clip. The dimensions of the PC are 56.5x107.5x153.3 mm (W x D x H) and the weight is 960 grams.

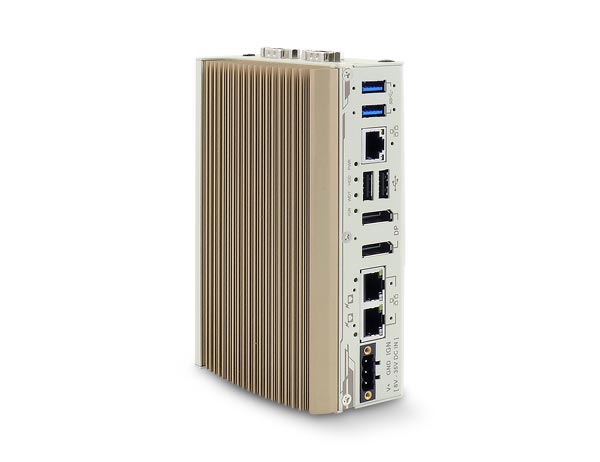

POC-400
  • Intel® Elkhart Lake Atom® x6425E Quad-Core CPU
  • Up to 32 GB DDR4-3200 RAM
  • 2x USB 3.1, 2x USB 2.0, DisplayPort connection
  • 3x 2.5 GbE ports, two of them with PoE+ function
  • 1x M.2 2280 M-Key slot
  • Fanless operation with a wide temperature range from -25°C to 70°C
  • Very compact design

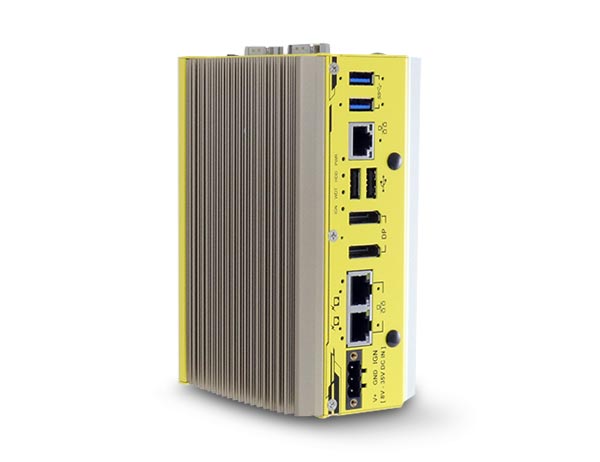

POC-451VTC
  • Intel® Atom® x6425E Quad-core Processor
  • Up to 32GB DDR4-3200 SDRAM
  • 2x USB 3.2, 2x USB 2.0, 2x Serial Ports, 2x DisplayPort
  • 3x 2.5G Ethernet, 2x PoE+ Ports
  • 4x isolated DI and 4x isolated DO
  • Power supply through 8 – 35V wide range input, with integrated ignition control
  • E-Mark and MIL-STD-810G Certification
POC-410
  • Intel® Elkhart Lake Atom® x6425E Quad-Core CPU
  • Up to 32 GB DDR4-3200 RAM
  • 2x USB 3.1, 2x USB 2.0, DisplayPort connection
  • 3x 2.5 GbE ports
  • 1x M.2 2280 M-Key slot
  • Fanless operation with a wide temperature range from -25°C to 70°C
  • Very compact design

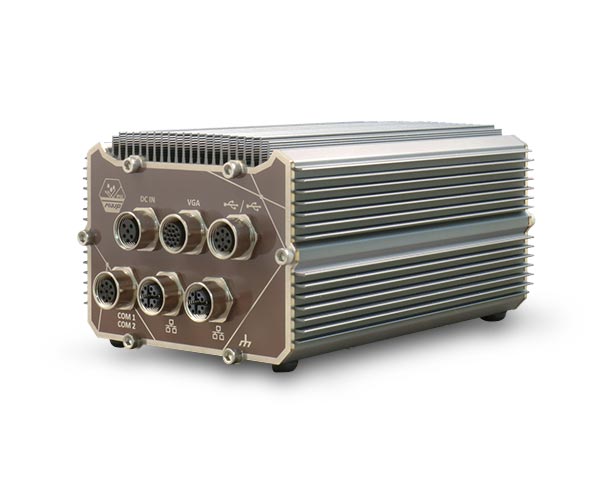

POC-465AWP
  • Intel® Elkhart Lake Atom® x6425E quad-core CPU
  • Up to 32GB DDR4-3200 SDRAM
  • M12 connections: 2x USB, 2x Ethernet, 2x serial interfaces, 1x VGA
  • M.2 2280 SSD, 1x full-size miniPCIe port
  • Robust, fanless operation up to 70°C
  • Water and dust protected to IP66

Advantages of DIN-Rail PCs in the Industry

The integration of DIN-Rail PCs into industrial applications offers numerous advantages tailored to modern industrial requirements:

  • Space-Saving Installation: Compact design allows easy integration into tight control cabinet spaces.
  • Easy Maintenance: Modular construction and fanless designs reduce maintenance efforts.
  • High Reliability: Robust construction withstands vibrations, extreme temperatures, and dust.
  • Flexibility: Multiple interfaces and expansion options for diverse applications.
  • Cost Efficiency: Optimized processes and fewer downtimes lower operational costs.

Thanks to their robust design and versatility, DIN-Rail PCs are an ideal solution for automation and control tasks across various industries.

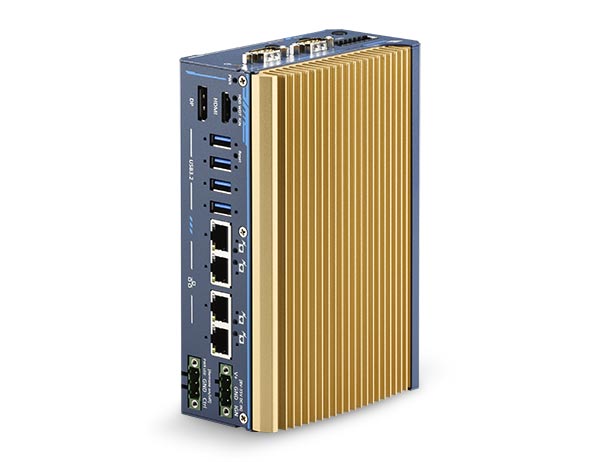

POC-700 Serie
  • Intel® Alder Lake Coreâ„¢ i3-N305 or Atom® x7425E CPU
  • Up to 16GB DDR5-4800 RAM
  • 4x USB 3.2, 4x Gigabit Ethernet (PoE+) ports, Displayport, HDMI
  • 1x M.2 2280 M key slot, 1x full-size mini PCIe
  • Fanless operation with a wide temperature range from -25°C to 70°C
  • High performance with very compact dimensions

POC-700 Series – Versatile and Robust

The POC-700 series features an Intel® Alder Lake Core™ i3-N305 or Atom® x7425E CPU, up to 16 GB DDR5-4800 RAM, multiple USB and Ethernet ports, as well as DisplayPort and HDMI. This model also offers fanless operation and is designed for temperatures ranging from -25°C to 70°C.

The DIN rail is part of the standard accessories and is mounted on the side of the device as described above.

Nuvo-9000 Series – Ultimate Performance for Demanding Applications

The Nuvo-9000 series is powered by Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPUs, supports up to 64 GB DDR5-4800 RAM, and offers numerous USB and Ethernet ports. It features expandable storage options and is both robust and fanless, with an operating temperature range of -25°C to 70°C.

The DIN rail is an optional accessory and is mounted using a plate on the bottom of the device.


Nuvo-9000 Series
  • Intel® 13th/12th Gen Coreâ„¢ i3/i5/i7/i9 CPU
  • Up to 64GB DDR5-4800 RAM
  • 6x USB 3.2, 2x USB 2.0, 1x USB-C
  • Up to 6x 2.5G Ethernet (PoE+) ports
  • 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key slot
  • Robust and fanless, operating temperature range from -25 °C to 70 °C
  • Expansion cassette and MezIO interface

Selecting the Right DIN-Rail PC

Selecting the right DIN-Rail PC is a critical step to ensure that the specific requirements of your application are fully met. Different industries and use cases demand varying specifications and features, making it essential to clearly define individual needs beforehand. Key considerations include processing power, the number of interfaces, available space in the control cabinet, and specific environmental requirements such as temperature ranges, vibration resistance, or protection against dust and moisture.

At OMTEC, you’ll find a wide range of DIN-Rail PCs specifically designed for mounting on DIN rails. These models stand out for their compact design, durable materials, and reliable performance, even in demanding environments. Thanks to their flexibility, these devices are ideal for applications in automation technology, building management systems, or industrial manufacturing. Additionally, many models support fanless cooling, making them particularly low-maintenance.
