POC-465AWP
Waterproof IP66 Computer with Intel® Atom® x6425E CPU, 2,5G Ethernet and M12 ports
Features
- Intel® Elkhart Lake Atom® x6425E quad-core CPU
- Up to 32GB DDR4-3200 SDRAM
- M12 ports: 2x USB, 2x 2.5G Ethernet, 2 serial interfaces, VGA
- M.2 2280 SSD, 1x full-size miniPCIe port
- Robust, fanless operation up to -25°C ~ 70°C
- MIL-STD-810G, EN 55032 & EN 55035 certification
- Water and dust protected according to IP66

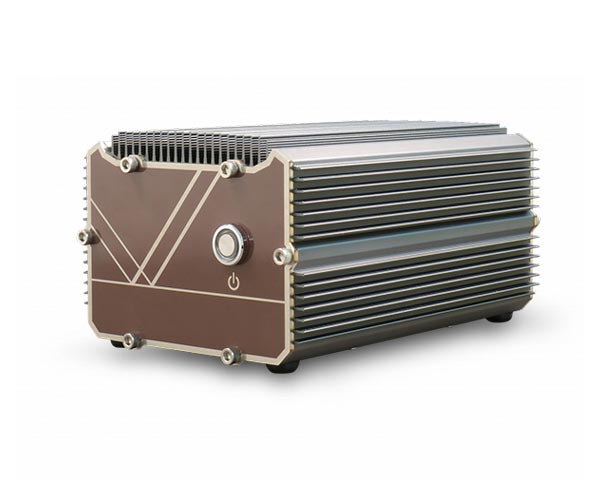

The POC-465AWP from Neousys is an IP66-certified DIN-rail computer powered by the Intel® Elkhart Lake Atom processor. The acronym AWP stands for "Affordability, Waterproof, and Protection," reflecting its cost-effective, waterproof, and highly durable design. This system is specifically engineered to tackle challenges in demanding environments. With its airtight stainless steel and aluminum enclosure, the POC-465AWP reliably protects internal components from moisture, salt corrosion, and dust, making it ideal for use in industries such as agriculture and mining.
Key Features of the POC-465AWP IP66 DIN-Rail Computer
- Rugged, Waterproof Enclosure: The hermetically sealed IP66-certified casing provides comprehensive protection against water, dust, and corrosion, making it suitable for harsh environments such as agriculture, mining, and industrial facilities.
- Wide Operating Temperature Range: The POC-465AWP performs reliably in temperatures ranging from -25°C to 70°C. Its efficient thermal design minimizes performance throttling even under extreme conditions.
- Durable M12 Connectors: The M12 connectors ensure reliable data and power transmission, even in environments with heavy vibrations or shocks.
- Versatile Connectivity: The system includes two 2.5G Ethernet ports, isolated RS-232 and RS-422/485 interfaces, as well as VGA and USB 2.0 ports. An M.2 M-key slot supports SATA SSDs, and a Mini-PCIe slot enables wireless connectivity via Wi-Fi, LTE, or CAN-Bus.
- Compact Design: With its ultra-compact dimensions, the POC-465AWP easily fits into tight installation spaces without compromising on performance.
Why the POC-465AWP is the Ideal IP66 DIN-Rail Computer
The POC-465AWP combines waterproof construction, rugged connectors, and excellent thermal management to ensure high reliability in challenging environments. Its versatile connectivity options and IP66 certification make it the perfect choice for outdoor applications such as fire protection in agriculture and forestry, unmanned vehicles, and industries like food and pharmaceutical manufacturing. This IP66 DIN-rail computer delivers a durable and cost-effective solution for demanding use cases.
Discover the benefits of the POC-465AWP and invest in a future-ready solution for your industrial challenges.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, SIM Socket |
|---|---|
| CPU: | Intel® Atom® x6425E |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| DC Input: | M12 A-coded 5-pin port |
| Ethernet: | 2.5G |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| IP protection class: | IP66 |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| Power supply: | 8 ~ 35V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | M.2 2280 NVME |
| TPM: | TPM 2.0, dTPM 2.0, fTPM 2.0 |
| USB: | USB 2.0 |
| USB Ports: | 1x, 2x |
| Video: | VGA |
