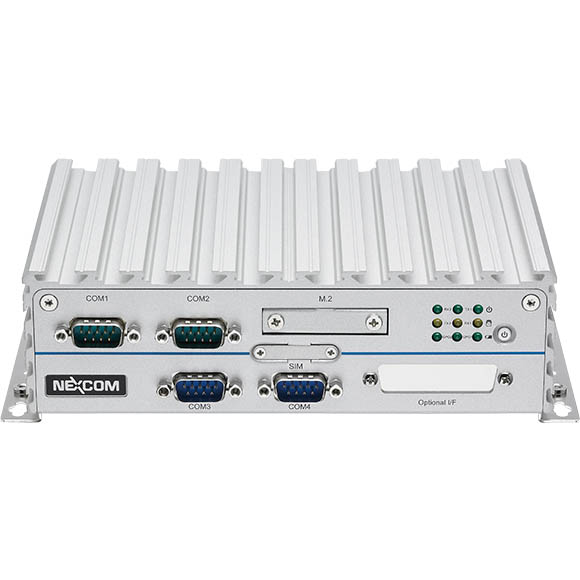

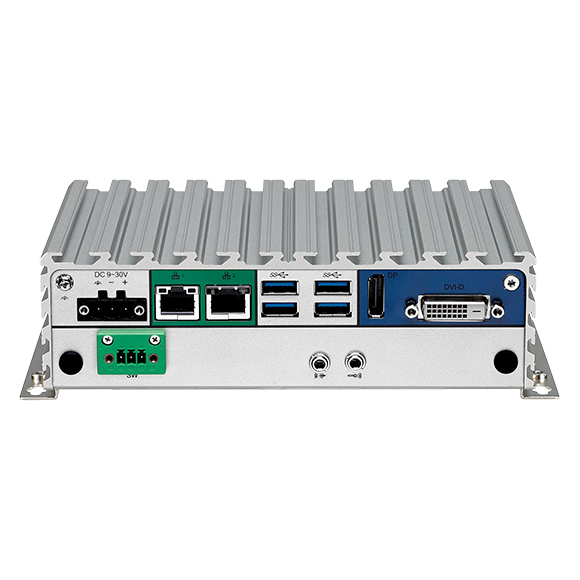

NISE-107 series
Fanless compact low-power industrial PC with Intel Atom E3940 CPU
Features
- Intel Atom E3940 Quad Core CPU
- Up to 8GB DDR3 RAM
- 1x DisplayPort, 1x DVI-D
- 2x Intel I210 GbE LAN Ports
- 4x USB 3.0, 4x serial RS232/422/485 Ports
- 1x 2,5" SSD, 1x M.2 2242 NVME
- MiniPCIe port for Wifi/4G Module
Powered by Intel Atom® x5-E3940 processor Quad Core, 1.80 GHz (formerly codenamed "Apollo Lake "), NISE 107-E3940 presents IoT gateway for factory automation. Up to 8G DDR3L memory, the NISE 107-E3940 supports operating temperature from -10°C to 60°C with typical DC input 9~30V. The NISE 107-E3940 has high integration ability with 2 x COM ports (RS232/422/485), optional mini-PCIe module and 2 x optional COM ports (RS232) which makes it a reliable connection with devices in factory automation applications, IoT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 107-E3940 is definitely the top choice for M2M intelligent system as a factory automation controller and gateway.
Technical details
| Add-ons: | Full-size Mini PCIe, SIM Socket |
|---|---|
| Audio: | Microphone input, Speaker out |
| CPU: | Intel® Atom™ E3940 |
| Certificates: | CE, EN 61000-6-2, FCC Class A |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -10°C ~ 55°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| Power supply: | 9 ~ 30V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2242 NVMe |
| USB: | USB 3.0 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DVI-D, DisplayPort |
