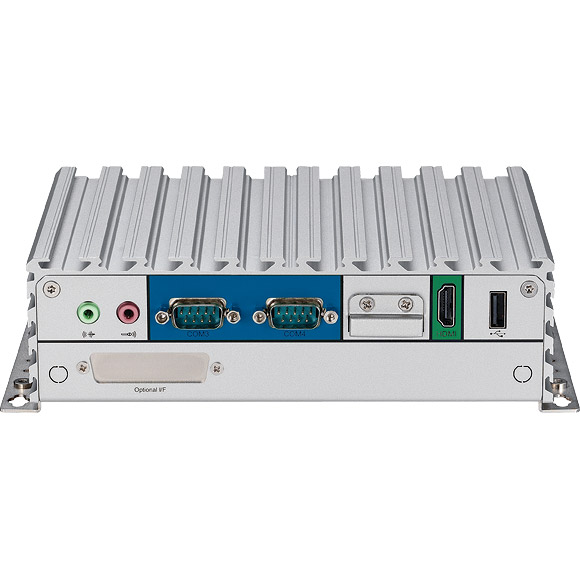

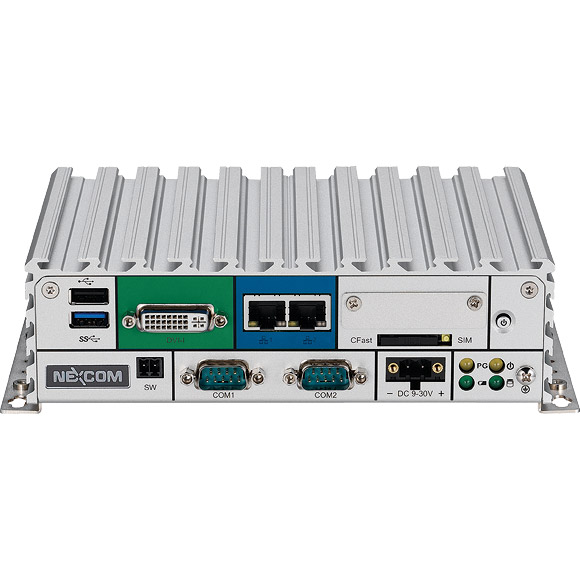

NISE-105 series
Fanless compact low-power industrial PC with Intel Atom E3845 CPU
Features
- Intel Atom E3845 Quad Core CPU
- Up to 8GB DDR3 RAM
- 2x Gigabit Intel I210 Ethernet Ports
- USB 2.0 & USB 3.0
- Two independent displays via HDMI & DVI-I
- 4x serial RS232/422/485 interfaces
- MiniPCIe port for Wifi/4G Module
- -20 ~ 70 °C operating temperature
Powered by the latest generation of Intel Atom® processor E3845 (formerly codenamed "Bay Trail-I"), the NISE 105-E3845 provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. NISE 105-E3845 support ACP ThinManager that offers management solutions for the modern factory by simplifying management and also support Indusoft for HMI and SCADA. Up to 8G DDR3L memory, NISE 105-E3845 have several options on storage devices like CFast, HDD and SSD. In addition to no cable connection on the NISE 105-E3845, it brings NISE 105-E3845 the sustainability to work in harsh environment both with temperature and vibration concern. The NISE 105-E3845 has high integration ability with optional mini-PCIe module and 4 x COM ports, which makes it a real intelligent system for various applications such as factory automation applications, network applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 105-E3845 is definitely the top choice for M2M intelligent system and factory automation platforms.
Technical details
| Add-ons: | Full-size Mini PCIe, SIM Socket |
|---|---|
| Audio: | Microphone input, Speaker out |
| CPU: | Intel® Atom™ E3845 |
| Certificates: | CE, FCC Class A, UL |
| DC Input: | 2-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -20°C ~ 70°C |
| Operating system: | Linux, Windows 7, Windows 8, Windows 10, Windows 10 IoT |
| Power supply: | 9 ~ 30V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, CFast Card |
| USB: | USB 2.0, USB 3.0 |
| USB Ports: | 1x, 2x, 3x |
| Video: | DVI-I, HDMI |
