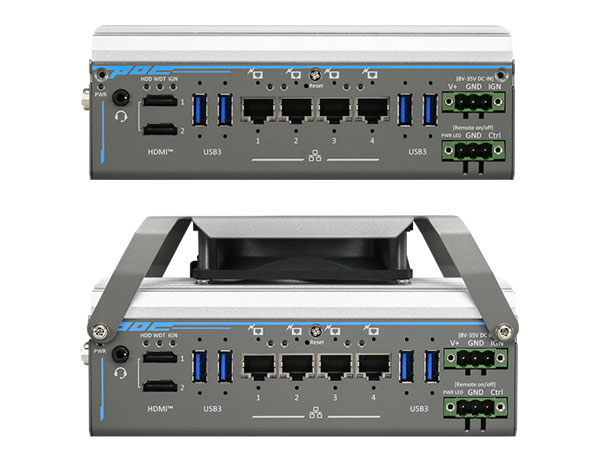

POC-915
Ultra compact Embedded Computer with AMD® Ryzen™ PRO 8640U, up to 32GB DDR5 RAM and 4x PoE+
Features
- AMD® Ryzen™ PRO 8640U CPU, 6C/ 12T
- Up to 32GB DDR5-5600 RAM
- 4x GbE Ports with PoE+
- 4x USB 3.2, 2x HDMI, 2x COM, 4-CH DIO
- -25°C ~ 70°C operating temperature
- DIN-Rail and wall mount
- Extreme compact sizing
- MIL-STD, CE, FCC, UL and IEC certified
The POC-900 series is the latest addition to Neousys' compact POC family, powered by the AMD® Ryzen™ embedded 8000 series platform. By retaining the same footprint, dimensions and DIN-rail mounting design as the current POC-700 and POC-500 series, the POC-915 ensures compatibility with existing installations while offering significant performance and connectivity upgrades.
Featuring the AMD® Ryzen™ PRO 8640U processor, the POC-915 offers up to 270% performance improvement over POC-500 platforms. In addition, its storage and memory have been enhanced, with support for M2 Gen 4x4 NVMe SSD and DDR5-5600 memory, they enable faster data access and improved system responsiveness for demanding edge AI and industrial applications.
The POC-915 provides four Gigabit Ethernet ports with PoE+, four USB 3.2 ports, and four digital inputs and outputs (DI/ DO) for connectivity with cameras, sensors, and control systems. In addition, it supports Neousys' MezIO® interface, allowing flexible I/O expansion to meet specific application requirements. Combining next-generation AMD® performance with compact, rugged reliability, the POC-900 is engineered to deliver exceptional computing power and versatility for industrial automation, edge AI, and machine vision deployments.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, MezIO® Port, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | AMD® Ryzen™ PRO 8640U |
| Certificates: | CE, EN 55032, EN 55035, FCC Class A, IEC62368-1, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I, UL62368-1 |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Design: | Normal |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | AMD® Radeon RDNA3 Graphics |
| Memory: | 1x DDR5 Slot |
| Memory capacity: | 8 GB, 16 GB, 32 GB |
| Mounting: | DIN-rail mount, Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11, Windows 11 IoT |
| PoE: | Yes |
| PoE+ Ports: | 4x RJ45 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| Remote: | 3-pin pluggable terminal block for remote control |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | M.2 2280 NVME |
| TPM: | dTPM 2.0 |
| USB: | USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | HDMI |
