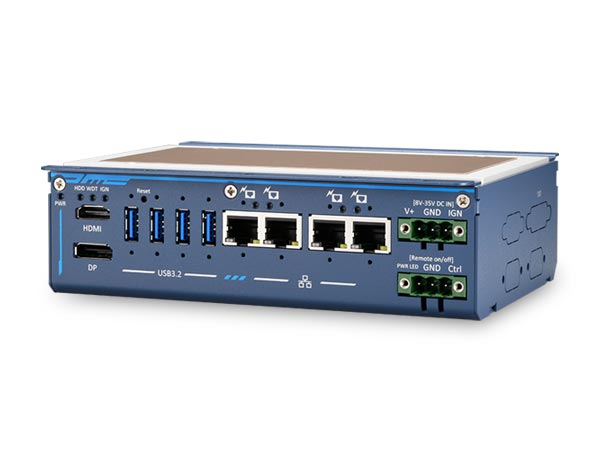

POC-715-FT
Ultra-kompakter lüfterloser Embedded Computer mit Intel® Core™ i3-N305, 4x PoE+ und Flattop Heatsink
Features
- Intel® Alder Lake Core™ i3-N305 CPU
- Bis zu 16GB DDR5-4800 RAM
- 4x USB 3.2, 1x Displayport, 1x HDMI
- 4x Gigabit Ethernet Ports mit PoE+ Funktion
- 1x M.2 2280 M key, 1x full size mini PCIe
- Ultra kompaktes lüfterloses Design
- Noch kompakter dank Flattop Heatsink
- Wandhalterung
- CE/FCC Class A und MIL-STD-810H zertifiziert
The POC-715-FT is an innovative variant of Neousys' renowned POC-700 series, featuring a unique flat-top heatsink design. This design enables effective heat transfer to the outer surface, making the DIN-rail computer ideal for use in sealed enclosures with limited airflow.
Key Features of the POC-715-FT DIN-Rail Computer
- Intel® Core™ i3-N305 Processor: The 8-core/8-thread processor with integrated 32EUs UHD Graphics is optimized for AI inference tasks via Intel OpenVINO™, delivering exceptional computing performance.
- Enhanced Memory Capacity: The POC-715-FT supports DDR5-4800 memory technology and features an M.2 2280 M-key NVMe slot for high-speed storage access.
- Versatile Connectivity Options: With four USB 3.2 Gen2 ports and four GigE PoE+ ports with screw-lock mechanisms, the computer ensures reliable connections for Ethernet and USB cameras. It also includes COM ports and isolated DIO for device monitoring and control.
- Flexible Expansion: A Mini-PCIe slot allows for the integration of wireless modules such as WiFi, LTE/5G, or CAN-Bus devices, enhancing the system's versatility.
- Compact and Fanless Design: The flat-top heatsink reduces the device's size by 20% while improving heat dissipation, making the POC-715-FT the ideal choice for cabinet installations.
Why the POC-715-FT is the Ideal DIN-Rail Computer
With its efficient flat-top heatsink, extensive connectivity options, and robust design, the POC-715-FT is perfectly suited for demanding industries such as oil and gas, mining, and environments requiring dust and water resistance. It delivers reliable performance in a compact form factor, making it the perfect solution for applications requiring fanless heat dissipation.
Learn more about efficient heat dissipation with flat-top heatsink designs in our Wiki.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, MezIO® Port, SIM Socket |
|---|---|
| CPU: | Intel® i3-N305 |
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, EN62368-1, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Design: | Flat-Top Heatsink |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR5 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB |
| Mounting: | DIN-rail mount, Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE+ Ports: | 4x RJ45 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | M.2 2280 NVME |
| TPM: | dTPM 2.0, fTPM 2.0 |
| USB: | USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort, HDMI |
