POC-400
Fanless, ultra-compact embedded controller with Intel® Elkhart Lake Atom™ E6425 CPU and 2.5GbE
Features
- Intel® Elkhart Lake Atom® x6425E Quad-Core CPU
- Up to 32 GB DDR4-3200 RAM
- 2x USB 3.1, 2x USB 2.0, DisplayPort connection
- 3x 2.5 GbE ports, two of them with PoE+ function
- 1x M.2 2280 M-Key slot
- Fanless operation with a wide temperature range from -25°C to 70°C
- Very compact design
The POC-400 is a fanless, ultra-compact embedded PC specifically designed for industrial applications. Featuring the latest Intel® Atom® x6425E quad-core CPU from the Elkhart Lake platform, the POC-400 delivers 1.8 times higher CPU performance and twice the GPU performance compared to the previous generation.
Main Features of the DIN-Rail PC POC-400

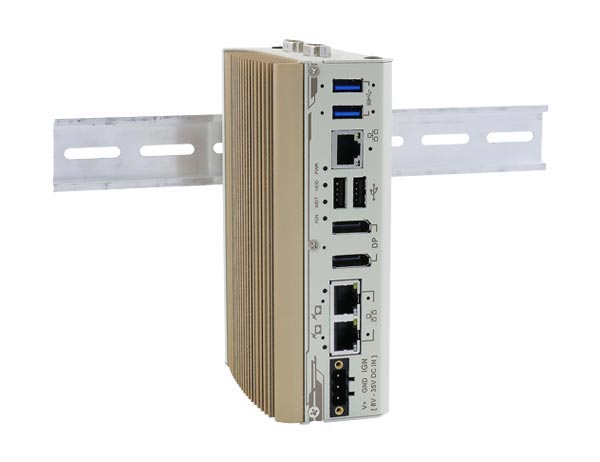

- Compact Design: Measuring just 56 x 108 x 153 mm, the POC-400 easily fits into confined spaces. Its robust chassis supports convenient DIN-rail mounting and offers front-accessible interfaces.
- Enhanced Network Connectivity: Equipped with three 2.5GBASE-T Ethernet ports supporting IEEE 802.3 PoE+, the POC-400 provides high data bandwidth and is ideal for devices like NBASE-T cameras. It is also backward compatible with 1000/100/10 Mbps Ethernet.

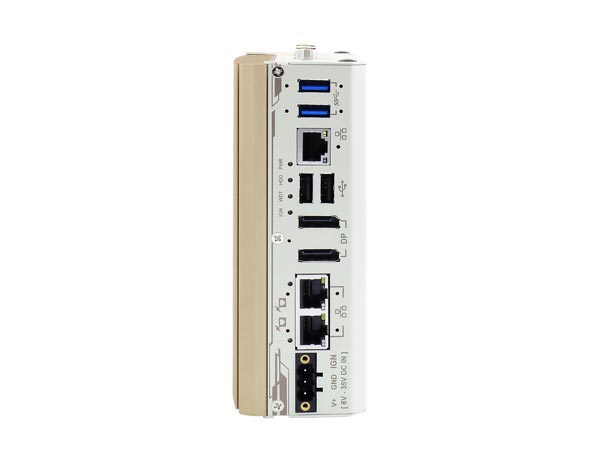

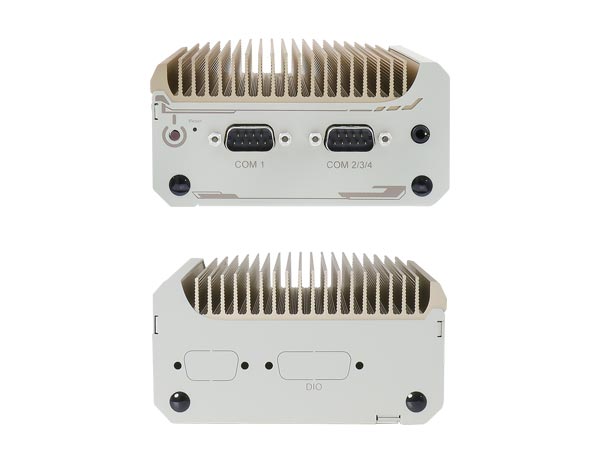

- Versatile I/O Interfaces: The POC-400 features two 4K DisplayPorts, two USB3.1 (Gen1), two USB 2.0, and COM ports, making it perfect for general industrial applications.
- Modular Expansion Options: Using Neousys' proprietary MezIO® interface, additional functionalities such as isolated DIO, RS-232/422/485, ignition control, and 4G/5G can be added via optional modules.
- AI Integration: An internal M.2 E Key socket supports the integration of a Google TPU or an Intel® Movidius VPU module, transforming the POC-400 into a powerful AI inference platform for edge computing.
Why the POC-400 is the Ideal DIN-Rail PC
The POC-400 combines a powerful 10nm Atom® CPU, PoE+-enabled 2.5G Ethernet ports, and an ultra-compact chassis with versatile expansion capabilities. These features make it a flexible and reliable embedded controller for a wide range of industrial applications, from control systems to edge computing.
Choose the DIN-Rail PC POC-400 to optimize your industrial projects with a compact, high-performance, and versatile solution.
Technical details
| Add-ons: | M.2 2230 E key, M.2 2280 M key |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Atom® x6425E |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810G, Method 514.7, Category 4, MIL-STD-810G, Method 516.7, Procedure I |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | 2.5G |
| Ethernet Ports: | 1x, 2x, 3x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | DIN-rail mount, Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | Windows 10, Windows 10 IoT |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | M.2 2280 NVME |
| TPM: | fTPM 2.0 |
| USB: | USB 2.0, USB 3.1 Gen 1 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort |
