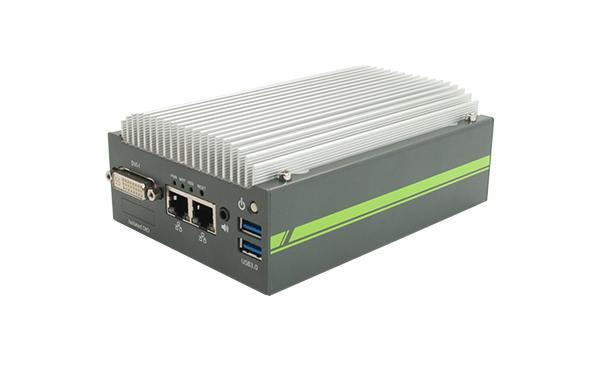

POC-212
Fanless ultra-compact DIN-Rail computer with Intel® Atom ™ CPU
Features
- Intel® Atom™ Quad-core CPU
- 1x SO-DIMM socket for DDR3L-1333
- 3x USB 3.0 and 1x USB 2.0

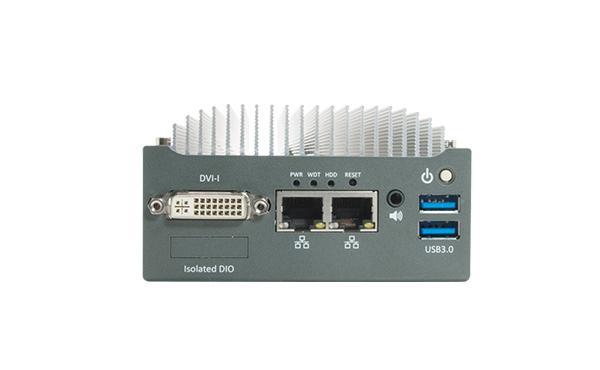

- 1x DVI port, up to 4x serial ports
- 2x Gigabit (PoE+) Ethernet ports
- Supports a 2.5" HDD/SSD
- Rugged fanless operation, wide temperature range -25°C to 70°C
- Wall or DIN-rail mounting
Product information "POC-212"
DIN-Rail PC POC-212: Compact and Versatile Embedded PC for Industrial Applications

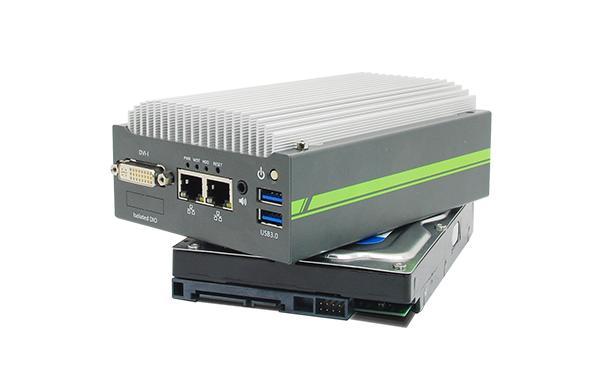

The POC-212 series from Neousys sets a new benchmark in the realm of fanless ultra-compact embedded PCs. Building on the success of the POC-100, the POC-212 series offers enhanced computing power and versatile functionality in a compact 3.5-inch hard drive form factor.
Main Features of the DIN-Rail PC POC-212
- State-of-the-Art Processor Performance: Equipped with the Intel® Atom™ Bay Trail processor, the POC-212 delivers significant performance gains for both arithmetic and graphics-intensive tasks. The Atom™ E3845 quad-core processor provides up to 200% more performance compared to older platforms like the D525/D2550.
- Extensive I/O Interfaces: The POC-212 features two Gigabit Ethernet ports and three USB 3.0 ports, making it ideal for connecting GigE or USB3 cameras in vision applications. The IEEE 802.3at PoE+ functionality supports powering IP cameras with up to 25.5 W, perfect for mobile surveillance applications.
- Industrial Connectivity: With up to four COM ports and Digital I/O (DIO), the POC-212 meets the diverse requirements of industrial applications.
- Compact and Robust Design: Measuring just 152.4 x 101.6 mm (6 x 4 inches) with an operating temperature range of -25°C to 70°C, the POC-212 is designed for deployment in challenging environments.
- Versatile Model Variants: Neousys offers different configurations of the POC-212 series, providing tailored solutions for specific tasks.
Why the POC-212 is the Ideal DIN-Rail PC
With outstanding processing power, extensive I/O options, and a compact design, the POC-212 is a perfect solution for industrial applications. Its versatility and durability make it capable of meeting the demands of modern industrial environments.
Choose the DIN-Rail PC POC-212 to support your projects with a powerful and reliable embedded system.
Technical details
| Add-ons: | Full-size Mini PCIe, SIM Socket |
|---|---|
| Audio: | Speaker out |
| CPU: | Intel® Atom™ E3845 |
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, IEC60068-2-27, IEC60068-2-64 |
| DC Input: | 2-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® HD Graphics |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB |
| Mounting: | DIN-rail mount (optional), Wall-mount |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | Linux, Windows 7, Windows 8, Windows 10, Windows 10 IoT |
| Power supply: | 8 ~ 35V DC |

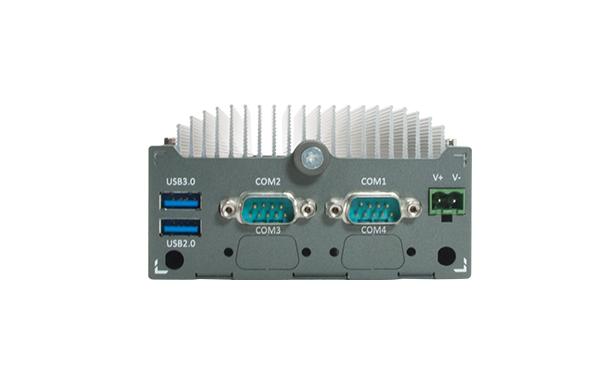

| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD |
| USB: | USB 2.0, USB 3.0 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DVI-I |
