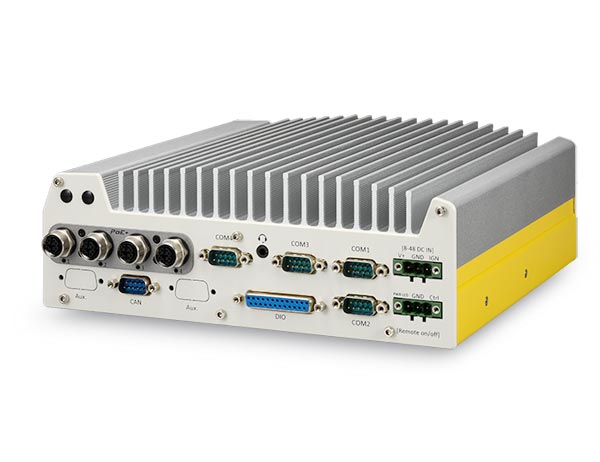

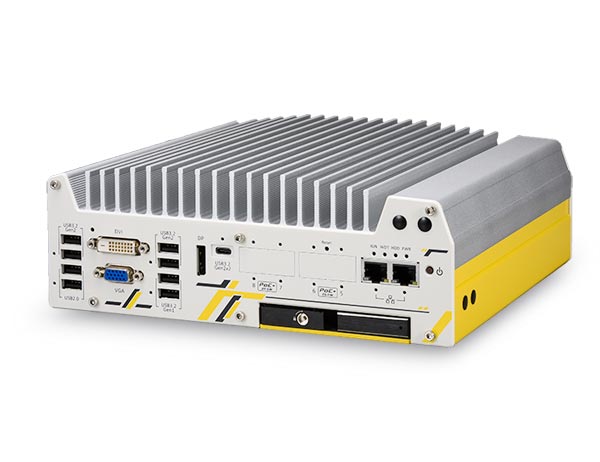

Nuvo-9104VTC

Fanless vehicle computer with Intel® 12th/13th Gen Core™ CPU and four RJ45 PoE+ ports

Fanless
Compact
Shock resistant

Features

  • Intel® 12th/13th Gen Core™ i3/i5/i7/i9 CPU
  • Up to 64GB DDR5-4800 RAM

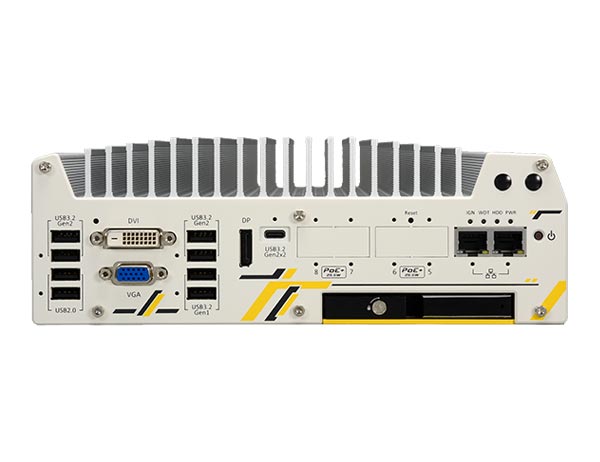

  • 8x USB 3.2, 1x USB-C, 1x VGA, 1x DVI-D, DisplayPort
  • 4x RJ45 PoE+ 2.5G Ethernet ports
  • 1x CAN 2.0 port, 4x isolated DI and 4x isolated DO
  • 2x 2.5’ SSD, 1x M.2 SSD, 3x miniPCIe
  • Ignition control for vehicles
  • E-Mark, EN50155 and EN50121 certifications

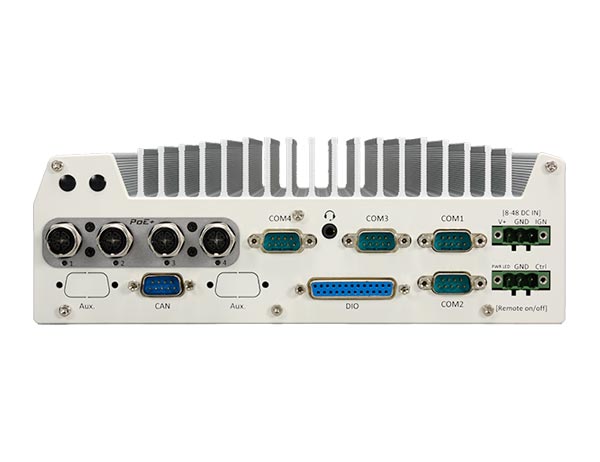

PoE+ Ports
Add-ons
Product information "Nuvo-9104VTC"

Nuvo-9104VTC is Neousys' latest rugged in-vehicle controller based on Intel® 13th/ 12th-Gen Core™ processors. Benefiting from cutting-edge Intel® 7 photolithography, the latest Core™ desktop processors come with up to 24 cores/ 32 threads, offering an incredible boost of computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.

Nuvo-9104VTC provides flexibility to support a range of peripherals and connections. It has 2.5Gb and 1Gb Ethernet ports, and four RJ45 802.3at PoE+ ports to supply 25W of power to connected devices such as IP cameras. The system also screw-lock mechanisms on the computer I/Os like Gigabit Ethernet, USB 3.2 Gen1 and USB 3.2 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity is essential for modern-day in-vehicle applications, and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 5G/ 4G, WiFi, GPS, and CAN module for communication.

On top of all that, Nuvo-9104VTC also features an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 48V wide-range DC input with ignition power control, and is E-Mark certified, making it the perfect solution with extraordinary reliability for various in-vehicle applications.

Technical details

Add-ons: Full-size Mini PCIe, M.2 2242 B key, M.2 2280 M key, M.2 3052 B key, SIM Socket
Audio: 1x 3,5mm jack mic in & speaker out
CPU: Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium®
CPU Generation: 12th generation, 13th generation
CPU Socket: LGA1700
Certificates: CE/FCC Class A, according to EN 55032 & EN 55035, E-Mark, EN 50121, EN50155, IEC61373:2010, Category 1, Class B
Chipset: Intel® Q670E
DC Input: 3-pin pluggable terminal block
DIO: 4-CH isolated DI und 4-CH isolated DO
Ethernet: 2.5G, Gigabit
Ethernet Ports: 1x, 2x, 3x, 4x, 5x, 6x
Humidity: 10% ~ 90% (non-condensing)
Ignition control: Yes
Intel AMT: AMT 16.0
Internal Graphics: Intel® UHD Graphics 770
Memory: 1x DDR5 Slot, 2x DDR5 Slots
Memory capacity: 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Mounting: Damping brackets, Wall-mount
Operating Temperature: -40°C ~ 70°C
Operating system: Linux, Windows 10, Windows 10 IoT, Windows 11
PoE: Yes
PoE+ Ports: 4x RJ45 PoE+
PoE-Standard: IEEE 802.3at (PoE+)
Power supply: 8 ~ 48V DC
RAID: RAID 0, RAID 1
Remote: 3-pin pluggable terminal block for remote control, PWR LED Output
Serial Ports: RS-232, RS-422, RS-485
Storage: 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME
TPM: dTPM 2.0
USB: USB-C, USB 2.0, USB 3.2 Gen 2
USB Ports: 1x, 2x, 3x, 4x, 5x, 6x, 7x
Video: DVI-D, DisplayPort, VGA
