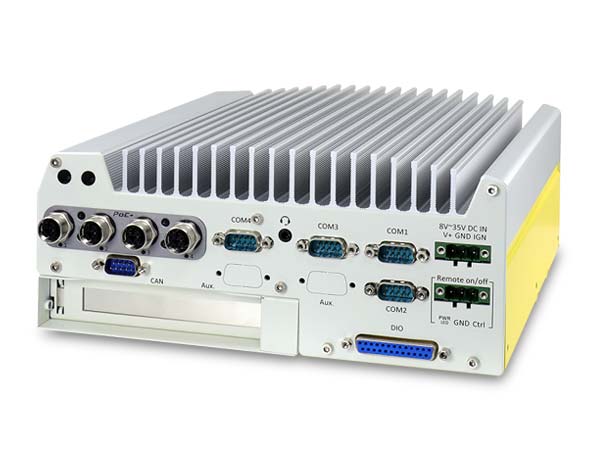

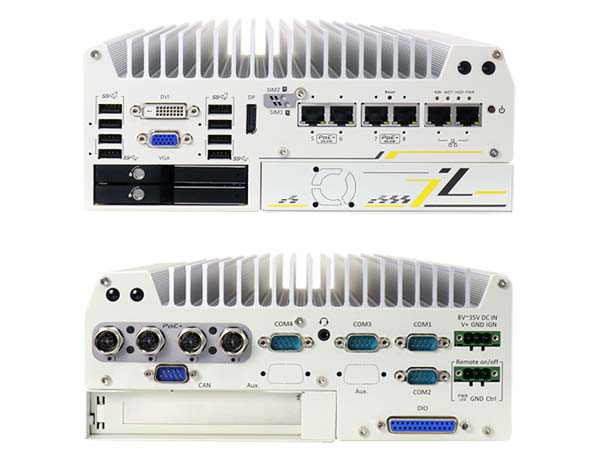

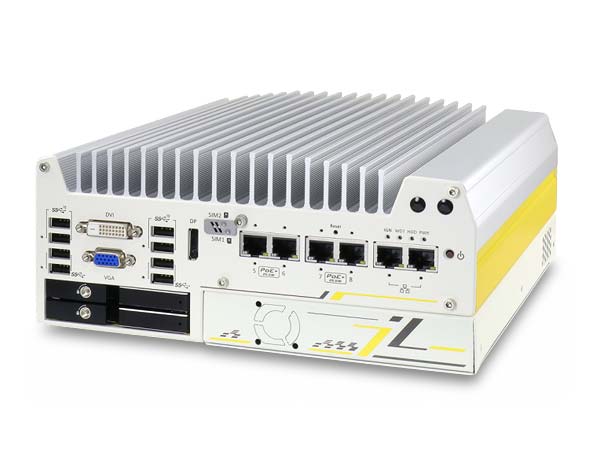

Nuvo-7208VTC

Intel® 9th/ 8th-Gen Core™ i7/i5/i3 in-vehicle fanless embedded computer with EN50155 certification

Fanless
Shock resistant
PoE

Features

  • Intel® 9th/8th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
  • Up to 64GB DDR4-2666 RAM
  • 8x USB 3.1, 1x VGA, 1x DVI, DisplayPort
  • 8x RJ45 PoE+ Gigabit Ethernet ports
  • 1x CAN 2.0 port, 4x isolated DI and 4x isolated DO
  • 2x 2.5’ SSD, 1x M.2 SSD, 3x miniPCIe
  • PCIe cassette for expansion cards
  • E-Mark and EN 50155/ EN 45545 certification
PoE+ Ports
Add-ons
Product information "Nuvo-7208VTC"

Nuvo-7208VTC is a rugged in-vehicle controller featuring Neousys' patented Cassette module with a x16 PCIe slot for add-on application card flexibility. Powered by Intel® 9th/ 8th-Gen Core™ processors with up to 8-core/ 8-thread and 64GB DDR4 memory, the system is ideal for advance in-vehicle applications. Nuvo-7208VTC offers an assortment of peripherals, connections and expansion flexibility. It has eight RJ45 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras and connector screw-lock mechanisms on I/Os like Gigabit Ethernet, USB 3.1 Gen1 and USB 3.1 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. There are two M.2 and three mini-PCIe sockets to install 3G/ 4G, WIFI, GPS, and CAN module for wireless communication. Neousys also offers a 4G cellular module option certified to work with renowned US telecommunications company which can save you implementation time and cost.

On top of all that, Neousys' patented Cassette design offers one additional PCIe slot for an add-on card, making it that much more flexible for invehicle applications. Nuvo-7208VTC also features two hot-swappable SATA HDD trays, isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155/ EN45545. The Nuvo7208VTC is a flexible and reliable solution for various in-vehicle applications.

Technical details

Add-ons: Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, PCIe x16 Gen3 Slot
Audio: 1x 3,5mm jack mic in & speaker out
CPU: Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3
CPU Generation: 8th generation, 9th generation
CPU Socket: LGA1151
Certificates: CE/FCC Class A, according to EN 55022 & EN 55024, E-Mark, EN50155, IEC61373:2010, Category 1, Class B
Chipset: Intel® Q370
DC Input: 3-pin pluggable terminal block
DIO: 4-CH isolated DI und 4-CH isolated DO
Ethernet: Gigabit
Ethernet Ports: 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x
Humidity: 10% ~ 90% (non-condensing)
Ignition control: Yes
Intel AMT: AMT 12.0
Internal Graphics: Intel® UHD Graphics 630
Memory: 1x DDR4 Slot, 2x DDR4 Slots
Memory capacity: 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Mounting: DIN-rail mount (optional), Damping brackets, Wall-mount
Operating Temperature: -40°C ~ 70°C
Operating system: Linux, Windows 10, Windows 10 IoT
PoE: Yes
PoE+ Ports: 8x RJ45 PoE+
PoE-Standard: IEEE 802.3at (PoE+)
Power supply: 8 ~ 35V DC
RAID: RAID 0, RAID 1
Remote: 3-pin pluggable terminal block for remote control, PWR LED Output
Serial Ports: RS-232, RS-422, RS-485
Storage: 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME
TPM: TPM 2.0
USB: USB 3.1 Gen 1, USB 3.1 Gen 2
USB Ports: 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x
Video: DVI-D, DisplayPort, VGA
