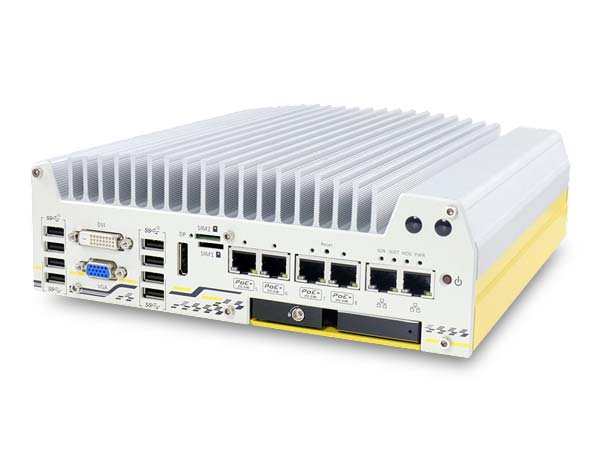

Nuvo-7104VTC
Intel® 9th/ 8th-Gen Core™ i7/i5/i3 in-vehicle fanless embedded computer with EN50155 certification
Features
- Intel® 9th/8th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 64GB DDR4-2666 RAM
- 8x USB 3.1, 1x VGA, 1x DVI, DisplayPort
- 4x RJ45 PoE+ Gigabit Ethernet ports
- 1x CAN 2.0 port, 4x isolated DI and 4x isolated DO
- 2x 2.5’ SSD, 1x M.2 SSD, 3x miniPCIe
- E-Mark and EN 50155/ EN 45545 certification
Nuvo-7104VTC is the latest rugged in-vehicle controller featuring purpose-built set and effortless 6-core architecture and 64GB DDR4 memory that gets a significant performance increase over previous generations for versatile in-vehicle applications.
Nuvo-7104VTC provides flexibility to support a range of peripherals and connections. It offers four RJ45 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with connector screw-lock mechanisms on computer I/Os like Gigabit Ethernet, USB 3.1 Gen1 and USB 3.1 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity are essential for modern day in-vehicle applications and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G/ 4G, WIFI, GPS, and CAN module for communication. Additionally, there is a 4G cellular module option that is certified to work with renowned US telecommunications company which can save you implementation time and cost.

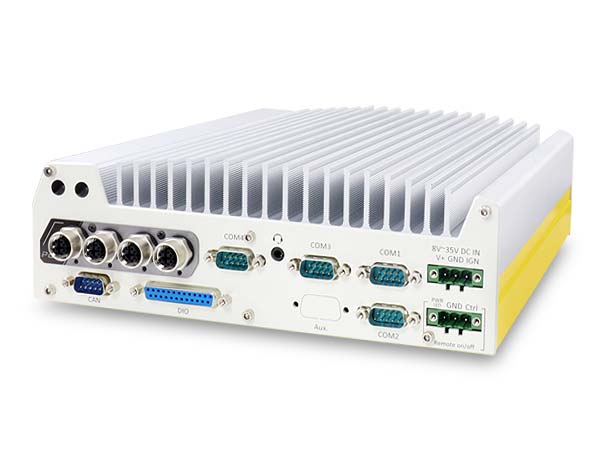

On top of all that, Nuvo-7104VTC also features isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155/ EN 45545. The Nuvo-7104VTC is the perfect solution with extraordinary reliability for various in-vehicle application needs.
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Certificates: | CE/FCC Class A, according to EN 55022 & EN 55024, E-Mark, EN50155, IEC61373:2010, Category 1, Class B |
| Chipset: | Intel® Q370 |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Intel AMT: | AMT 12.0 |
| Internal Graphics: | Intel® UHD Graphics 630 |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | DIN-rail mount (optional), Damping brackets, Wall-mount |
| Operating Temperature: | -40°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| PoE: | Yes |
| PoE+ Ports: | 4x RJ45 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | TPM 2.0 |
| USB: | USB 3.1 Gen 1, USB 3.1 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Video: | DVI-D, DisplayPort, VGA |
