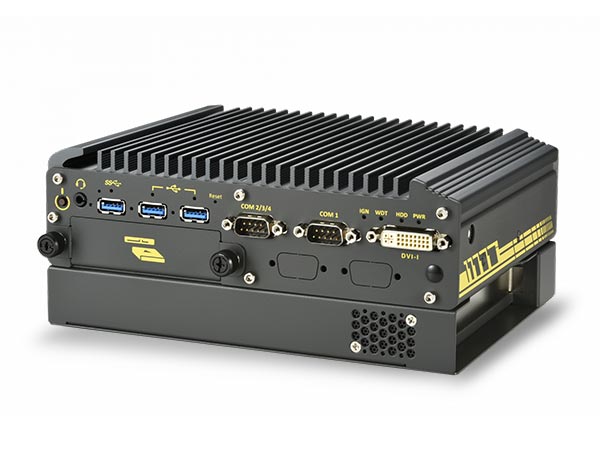

Nuvo-2612VTC
Fanless in-vehicle computer with Intel® Elkhart Lake Atom® x6425E CPU and four M12 PoE+ ports
Features
- Intel® Elkhart Lake Atom® x6425E quad-core processor
- Up to 32 GB DDR4 RAM

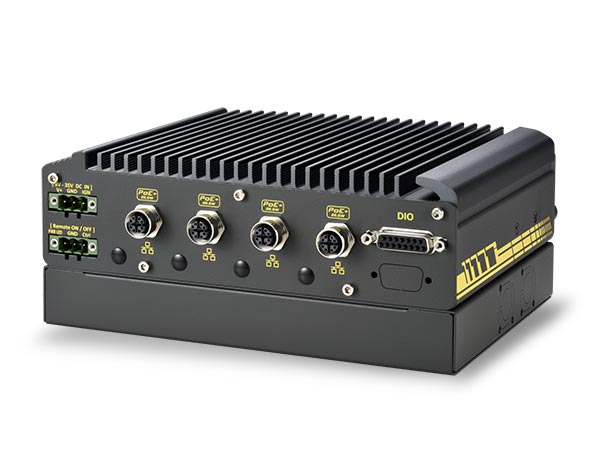

- Four GbE PoE+ ports via X-coded M12 connectors
- 1x M.2 NVME, 1x 2.5" SSD
- An M.2 3042/3052 B-key for mobile 4G/5G broadband connectivity
- 2x Full-Size Mini-PCIe for Wi-Fi, CAN, or GNSS modules
- Expansion cassette with 1x PCIe x4 slot
- Rugged, operating temperature range from -40°C to 70°C, fanless
- Certified for E-Mark and EN 50155 EMC compliance
Compact Vehicle PC Nuvo-2612VTC: Rugged Onboard Computer with AI Acceleration
The Nuvo-2612VTC is a compact, rugged vehicle PC powered by an Intel® Atom® processor. Featuring four M12 Gigabit PoE+ ports and a front-accessible 2.5-inch drive bay supporting drives and SSDs up to 15 mm in height, it is ideal for versatile applications such as mobile gateways, data loggers, and network video recorders (NVRs) in on-road, off-highway, or railway environments.
Main Features of the Compact Vehicle PC Nuvo-2612VTC
- Powerful CPU: The Intel® Elkhart Lake Atom® x6425E quad-core CPU delivers 1.8 times the performance of previous generations, ensuring fast and reliable processing for vehicle applications.
- Enhanced Connectivity: With four x-coded M12 Gigabit PoE+ ports and USB 3.1 connectors with screw locks, the Nuvo-2612VTC ensures secure connections for cameras and other devices.
- Flexible Storage Options: In addition to an internal M.2 2280 SATA SSD, the PC features a front-accessible 2.5-inch drive bay that supports HDDs/SSDs with capacities up to 5 TB.
- Expansion with AI Acceleration: The Nuvo-2612VTC includes a cassette module for an additional Gen3 x2 PCIe slot, supporting an AI accelerator module. This transforms the PC into a powerful fanless GPU system for intelligent video analysis or data-intensive applications.
- Rugged Design: With fanless operation in a temperature range of -40°C to 70°C, wide-range DC input, and integrated ignition control, the Nuvo-2612VTC is built for challenging environments.
Why the Nuvo-2612VTC is the Ideal Compact Vehicle PC
The Nuvo-2612VTC combines powerful processing, advanced connectivity, and AI capabilities in a compact and rugged design. With M12 PoE+ connectivity, an integrated SuperCAP UPS, and flexible expansion options, this vehicle PC is perfect for applications in road traffic, logistics, and railway operations.
Choose the Compact Vehicle PC Nuvo-2612VTC to elevate your vehicle projects with a reliable and versatile onboard computer.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, M.2 3052 B key, PCIe Cassette, PCIe x4 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Atom® x6425E |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, E-Mark, EN 50121, EN50155, IEC61373:2010, Category 1, Class B, MIL-STD-810G, Method 514.7, Category 4, MIL-STD-810G, Method 516.7, Procedure I |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | Damping brackets, Wall-mount (optional) |
| Operating Temperature: | -40°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE+ Ports: | 4x M12 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| Remote: | 3-pin pluggable terminal block for remote control |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2280 NVME |
| TPM: | fTPM 2.0 |
| USB: | USB 2.0, USB 3.1 Gen 1 |
| USB Ports: | 1x, 2x, 3x |
| Video: | DVI-I, VGA |
