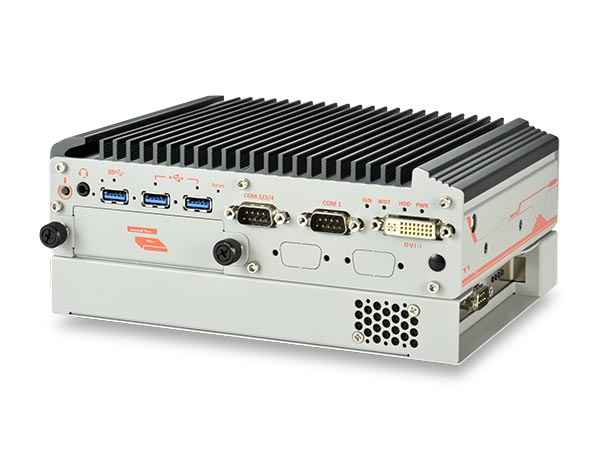

Nuvo-2600J-PoE
Fanless industrial PC with Intel® Atom® x6425E CPU, up to 32GB RAM, 2500 Ws UPS, and 4x PoE+ ports.
Features
- Intel® Elkhart Lake Atom® x6425E quad-core processor
- Up to 32GB DDR4-3200 SDRAM

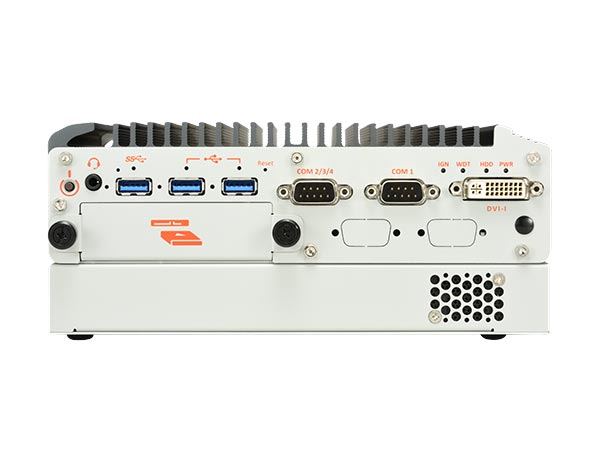

- 3x USB, VGA and DVI-I, 2x serial interfaces

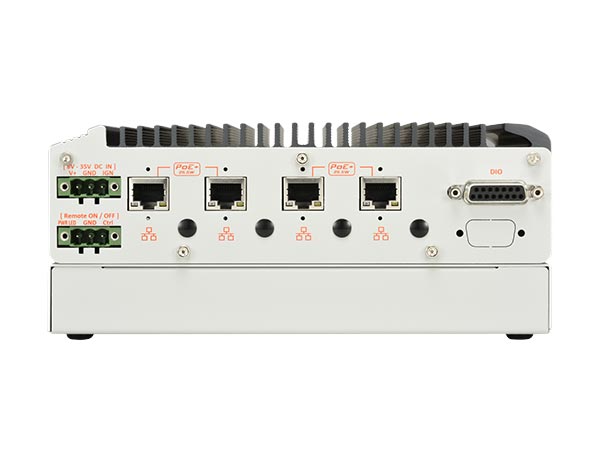

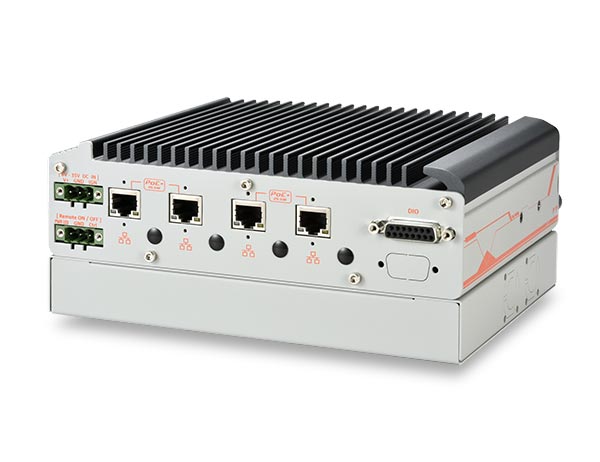

- Four Gigabit PoE+ Ethernet ports
- 4-CH isolated DI and 4-CH isolated DO
- Fanless operation at -25 to 70°C
- Built-in 2500 Ws UPS
- MIL-STD-810G, EN 55032, and EN 55035 certified
The Nuvo-2600 series is a fanless computer with Intel® Elkhart Lake Atom® CPU and flexible expansion options for various applications in manufacturing automation and machine vision, where a small footprint, Gigabit PoE+ capability, and front-accessible data storage are essential, while achieving a specific CPU performance with a power consumption of 12W or less.
Powered by the Intel® Elkhart Lake Atom® x6425E quad-core processor, the Nuvo-2600 offers 320% of the CPU performance of the previous Nuvo-2500E series. The Nuvo-2600 series features four Gigabit PoE+ and one USB 3.1 port, which are secured by screws to ensure connections, such as camera links. In addition to an internal M.2 2280 SATA SSD as system storage, the Nuvo-2600 offers a front-accessible 2.5-inch drive bay for an SSD/HDD with a height of 7 to 15 mm, providing up to 5TB of storage capacity. Additionally, the series includes an isolated RS-485 port and isolated DIO for robust industrial device connectivity. Internally, the Nuvo-2600 series offers expansion options with two Mini-PCIe sockets and an M.2 3042/3052 B-Key slot for supporting mobile 4G/5G broadband connections.
The Nuvo-2600 is available in two variants to meet different deployment requirements. The Nuvo-2600E is equipped with a PCIe expansion cassette for an additional PCIe card, such as a USB or GbE frame grabber card, isolated DIO, or an industrial network card. The Nuvo-2600J, on the other hand, features an integrated SuperCAP UPS for continued operation during power outages or voltage fluctuations in industrial environments. With its Intel Elkhart Lake Atom® quad-core CPU, wide operating temperature range, industrial-grade I/O interfaces, and expansion cassette module, the Nuvo-2600 series is the perfect fanless all-around industrial computer for applications in manufacturing automation and machine vision.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2242 B key, M.2 2280 M key, M.2 3052 B key, SIM Socket, USV (2500 Ws) |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Atom® x6425E |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810G, Method 514.7, Category 4, MIL-STD-810G, Method 516.7, Procedure I |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| PoE: | Yes |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2280 NVME |
| USB: | USB 2.0, USB 3.2 Gen 1 |
| USB Ports: | 1x, 2x, 3x |
| Video: | DVI-I, VGA |
