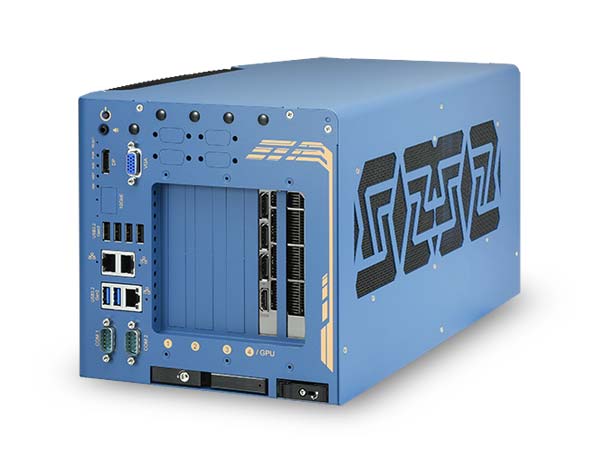

Nuvo-10108GC
Robust edge AI platform with support for one 350W NVIDIA® RTX™ GPU
Features
- Supports one RTX 350W graphics card
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 128GB DDR5-4800 SDRAM
- 1x 2.5" SSD and 1x M.2 2280 NVME
- 6x USB 3.2, 2x serial interfaces, VGA and Displayport
- 3x 2.5G Ethernet ports
- 3 additional PCIe x8 slots for expansion cards
- Operating temperature -25 °C to 60 °C
Product information "Nuvo-10108GC"
The Neousys Nuvo-10108GC sets new standards as a powerful embedded industrial PC, specifically designed for demanding applications in areas such as industrial automation, surveillance, and AI-based systems. This system stands out with outstanding technical features, delivering optimal performance for a variety of use cases.
- NVIDIA® GPU Support: Equipped with advanced NVIDIA® GPU technology, the Nuvo-10108GC provides impressive graphics and computing power for demanding applications in image processing, machine learning, and more.
- Expandability through PCIe Slots: With multiple PCIe slots, the device allows flexible expansion with additional cards to meet individual requirements, from interfaces to specialized accelerators.
- Rugged Design for Industrial Applications: The Nuvo-10108GC meets high standards for temperature, vibrations, and shock resistance. Its robust design ensures reliable performance even under extreme industrial conditions.
- High Memory Bandwidth: With support for powerful DDR5 memory, the system provides impressive memory bandwidth for computationally intensive applications.
- Operating System Independence: Compatible with various operating systems, the Nuvo-10108GC allows easy integration into existing systems, providing maximum flexibility.
With the Neousys Nuvo-10108GC, you get a reliable and powerful solution for your industrial applications. Invest in the future of industrial automation with this innovative embedded system, featuring advanced GPU support, expandable PCIe slots, rugged design, and high memory bandwidth.
Technical details
| Add-ons: | 2x PCIe x8 Gen3 Slot, 3x PCIe x8 Gen3 Slot, Full-size Mini PCIe, M.2 2242 B key, M.2 2280 M key, M.2 3052 B key, PCIe x8 Gen3 Slot, PCIe x16 Gen4 Slot |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 12th generation, 13th generation |
| CPU Socket: | LGA1700 |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I |
| Chipset: | Intel® R680E |
| DC Input: | 3-pin + 4-pin pluggable terminal block |
| Ethernet: | 2.5G |
| Ethernet Ports: | 1x, 2x, 3x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Intel AMT: | AMT 16.0 |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 1x DDR5 Slot, 2x DDR5 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB |
| Mounting: | Damping brackets, Wall-mount |
| Operating Temperature: | -25°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| Power supply: | 8 ~ 48V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 1x M.2 2280 NVME & 2.5" SATA SSD, 2,5" SSD |
| TPM: | dTPM 2.0 |
| USB: | USB 2.0, USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x |
| Video: | DisplayPort, VGA |
