NRU-52S+-JON16
Robuster NVIDIA® Jetson Orin™ NX Edge KI-Computer mit 4x PoE++ Ports für die intelligente Videoanalyse
Features
- NVIDIA® Jetson Orin™ NX 16GB SOM with JetPack Toolkit
- 4x IEEE 802.3bt PoE++ GbE ports with screw lock
- 2x Mini-PCIe sockets for Wi-Fi/GNSS/NVMe/CAN modules
- 1x 3042/3052 M.2 B Key socket for mobile 4G/5G communication
- 1x Hardware-configurable RS232/RS422/RS485 port
- DC input, 8 to 35 V, with integrated ignition control
- MIL-STD-810H and EN 50155 certification
The NRU-52S series is a rugged, fanless edge AI computer designed for wide temperature ranges, offering up to 100 TOPS for AI-based video analytics applications with H.264/H.265 video encoding and real-time inference. Powered by an NVIDIA® Jetson Orin™ NX/Xavier™ NX System-on-Module (SoM), it features NVIDIA® Ampere GPUs (Orin NX), CUDA cores, Tensor cores, and NVDLA (NVIDIA® Deep Learning Accelerator).
Leveraging the energy efficiency of NVIDIA® Jetson Orin™ NX with only 25 W power consumption, the NRU-52S+ decodes up to 18 streams of 1080p video at 30 fps while delivering 100 TOPS inference performance. Its high AI performance per watt makes the NRU-52S+ an ideal solution for applications with limited power sources, such as robots, vehicles, or rail systems. Neousys' industrial-grade thermal design enables the NRU-52S+ to support edge deployments requiring wide fanless temperature ranges, such as roadsides, pathways, construction sites, agriculture, and dust-intensive factories.

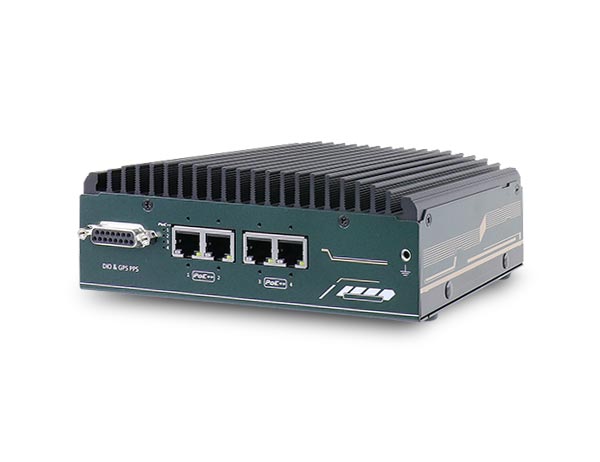

The NRU-52S+ provides four IEEE 802.3bt PoE++ ports. Each port can supply up to 90 W of power for IP or PTZ dome cameras, supporting AI-based detection, tracking, or recognition applications. The NRU-52S+ also offers flexible expansion options, including two mPCIe sockets for NVMe storage, Wi-Fi, GNSS, or V2X modules; an M.2 key for a 4G LTE or 5G NR module with a dedicated passive thermal design; and a total of five antenna openings for mobile broadband. It also features hardware-configurable RS232/RS422/RS485, 1x GPS PPS input, 3-channel isolated DI, and 4-channel isolated DO for communication with external devices.
With integrated PoE++ connectivity, 100 TOPS inference performance, and numerous NVIDIA AI JetPack toolkits, the NRU-52S+ opens up new possibilities for real-time video analytics, including autonomous machines, security alerts, law enforcement, and V2X applications. Its fanless operation, wide temperature range of -25° C to 70° C, wide DC input range, ignition control, and 4G/5G connectivity make the NRU-52S+ an ideal solution for both indoor/stationary installations and edge deployments in harsh environments.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2242 B key, M.2 3052 B key, SIM Socket |
|---|---|
| CPU: | NVIDIA® Jetson Orin™ NX |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, EN 50121, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 1x GPS PPS Input, 3-CH isolated DI and 4-CH isolated DO |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory capacity: | 16 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 70°C |
| PoE: | Yes |
| PoE-Standard: | IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++) |
| Power supply: | 8 ~ 35V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | M.2 2242 NVMe |
| USB: | USB 3.1 Gen 1 |
| USB Ports: | 1x, 2x |
| Video: | DisplayPort |
