Nuvo-9000 Series

Nuvo-9166GC

Productfeatures Neousys Nuvo-9166GC

Supports NVIDIA® L4 GPU and one additional PCIe card
Intel® 13th/12th-Gen Core™ up to 16C/ 24T 35W/ 65W
Heat dissipation for -25°C to 60°C wide-temperature operation
5x 2.5GbE and 1x GbE with optional PoE+ (ports 3~6)
1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 type-A ports
M.2 2280 M key socket (Gen4x4) supporting NVMe SSD
Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
MezIO™ interface for add-on expansion

Price on request

Nuvo-9100VTC

Productfeatures Neousys Nuvo-9100VTC

Intel® 13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU
4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
On-board isolated CAN bus for in-vehicle communication
4-CH isolated DI and 4-CH isolated DO
M.2 Gen4 x4 NVMe SSD slot
8V to 48V wide-range DC input with ignition power control
2x SATA ports with 1x hot-swappable HDD tray
Supporting RAID 0/1
E-Mark certified and EN 50155 EMC compliant

Price on request

Nuvo-9200VTC

Productfeatures Neousys Nuvo-9200VTC

Intel® 13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU
4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
On-board isolated CAN bus for in-vehicle communication
4-CH isolated DI and 4-CH isolated DO
M.2 Gen4 x4 NVMe SSD slot
2x hot-swappable SATA HDD trays, supporting RAID 0/ 1
8V to 48V wide-range DC input with ignition power control
Patented Cassette for PCIe add-on card accommodation
E-Mark certified and EN 50155 EMC compliant

Price on request

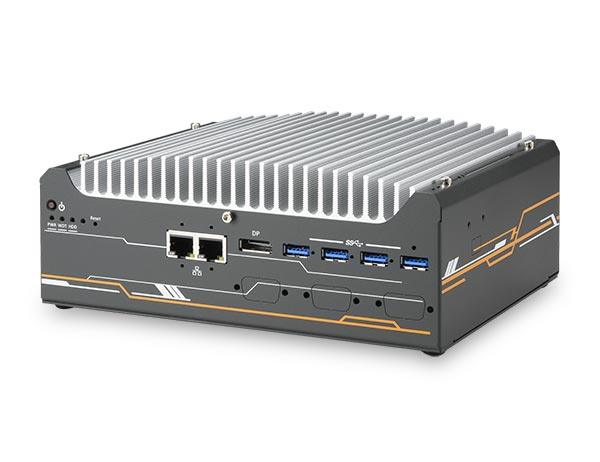

Nuvo-9501

Productfeatures Neousys Nuvo-9501

Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
Compact 212 x 165 x 80 mm footprint
Rugged, -10°C to 60°C fanless operation
Up to 32GB DDR4 3200 SODIMM
2x 2.5GbE and 4x USB3.2 Gen 1 with screw-lock
Supports 1x M.2 2280 Gen4 x4 NVMe storage
Supports 1x 3.5”/2.5” SATA HDD/SSD
VGA + DP dual display outputs

Price on request

Nuvo-9160GC

Productfeatures Neousys Nuvo-9160GC

Intel® 13th/12th-Gen Alder Lake Core™ up to 16C/ 24T 35W/ 65W CPU
Support NVIDIA® RTX series GPU card up to 130W TDP
Up to 64GB DDR5-4800 Memory
-25°C to 60°C wide temperature rugged operation
5x 2.5GbE and 1xGbE with optional PoE+ (ports 3~6)
1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 type-A ports
M.2 2280 M key socket (Gen4x4) supporting NVMe SSD
Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
MezIO™ interface for add-on expansion

Price on request

Nuvo-9531

Productfeatures Neousys Nuvo-9531

212 x 165 x 63 mm low-profile design
Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
Rugged, -25°C to 60°C fanless operation
4x GbE and 4x USB3.2 Gen 1 with screw-lock
1x hot-swappable HDD tray and 1x M.2 2280 Gen4 x4 NVMe
2x full-size mPCIe sockets
4-CH isolated DI and 4-CH isolated DO
VGA + DP dual display outputs

Price on request

Nuvo-9002E

Productfeatures Neousys Nuvo-9002E

Intel® 13th/12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Up to 64GB DDR5 4800 SDRAM
Patented Cassette for PCIe add-on card accommodation
Rugged, -25°C to 70°C fanless operation
1x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM
1x USB 3.2 Gen2x2 type-C and 8x USB 3.2 Gen2x1 type-A ports
Supports M.2 Gen4x4 NVMe and 2x SATA ports
MezIO™ interface for easy function expansion
VGA/ DVI/ DP triple independent display, 4K2K resolution

Price on request

Nuvo-9002DE

Productfeatures Neousys Nuvo-9002DE

Intel® 13th/12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Up to 64GB DDR5 4800 SDRAM
Patented Cassette for two PCIe add-on card accommodation
2x PCIe x16 slots
Rugged, -25°C to 70°C fanless operation
1x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM
1x USB 3.2 Gen2x2 type-C and 8x USB 3.2 Gen2x1 type-A ports
Supports M.2 Gen4x4 NVMe and 2x SATA ports
MezIO™ interface for easy function expansion
VGA/ DVI/ DP triple independent display, 4K2K resolution

Price on request

Nuvo-9002P

Productfeatures Neousys Nuvo-9002P

Intel® 13th/12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Up to 64GB DDR5 4800 SDRAM
Patented Cassette for PCI add-on card accommodation
Rugged, -25°C to 70°C fanless operation
1x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM
1x USB 3.2 Gen2x2 type-C and 8x USB 3.2 Gen2x1 type-A ports
Supports M.2 Gen4x4 NVMe and 2x SATA ports
MezIO™ interface for easy function expansion
VGA/ DVI/ DP triple independent display, 4K2K resolution

Price on request

Nuvo-9002LP

Productfeatures Neousys Nuvo-9002LP

Intel® 13th/12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Up to 64GB DDR5 4800 SDRAM
Flat design without additional cassette
Rugged, -25°C to 70°C fanless operation
1x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM
1x USB 3.2 Gen2x2 type-C and 8x USB 3.2 Gen2x1 type-A ports
Supports M.2 Gen4x4 NVMe and 2x SATA ports
MezIO™ interface for easy function expansion
VGA/ DVI/ DP triple independent display, 4K2K resolution

Price on request

Nuvo-9006E

Productfeatures Neousys Nuvo-9006E

Intel® 13th/12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Up to 64GB DDR5 4800 SDRAM
Patented Cassette for PCIe add-on card accommodation
Rugged, -25°C to 70°C fanless operation
6x GigE ports with optional PoE+
1x USB 3.2 Gen2x2 type-C and 8x USB 3.2 Gen2x1 type-A ports
Supports M.2 Gen4x4 NVMe and 2x SATA ports
MezIO™ interface for easy function expansion
VGA/ DVI/ DP triple independent display, 4K2K resolution

Available from stock!

Price on request

Nuvo-9006DE

Productfeatures Neousys Nuvo-9006DE

Intel® 13th/12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Up to 64GB DDR5 4800 SDRAM
Cassette for two PCIe add-on cards
Rugged, -25°C to 70°C fanless operation
5x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM
1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 type-A ports
Supports M.2 Gen4x4 NVMe and 2x SATA ports
MezIO™ interface for easy function expansion
VGA/ DVI/ DP triple independent display, 4K2K resolution

Price on request
