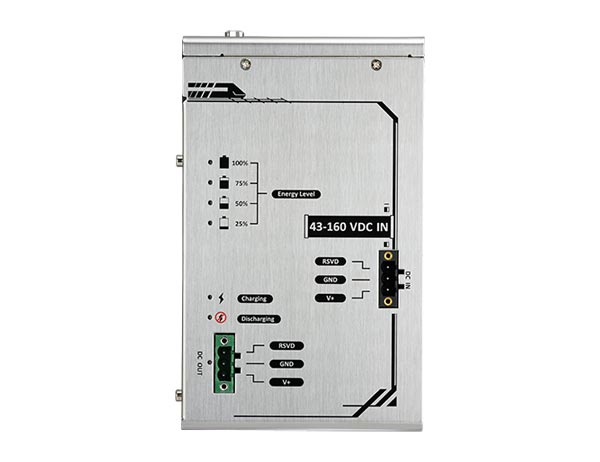

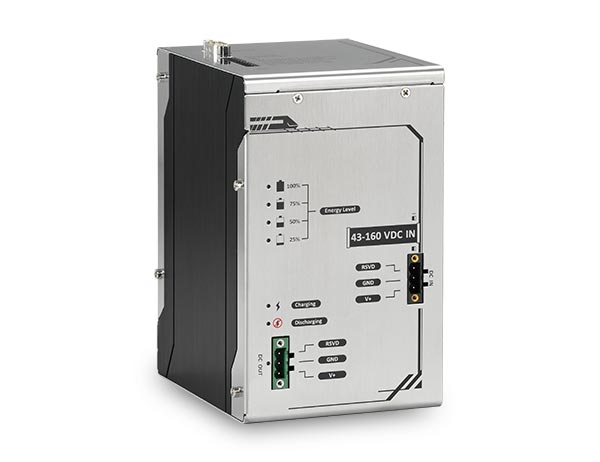

PB-9250J-110V

9250 w·s Standalone Supercapacitor-based UPS Module with 110V DC Input for Railway Application

Fanless
Compact
DIN Rail

Features

  • Universal standalone emergency power module, compatible with all box PCs
  • Supports a variable power supply of 43 – 160 V DC for use in railway applications
  • Supercapacitor technology, operating temperature of -40° C to 70° C, compliant with EN 50155 OT4 Class 4
  • Energy capacity of 9,250 watt-seconds
  • Maximum output power of 120 W for the connected backend system
  • Lifetime of over 10 years or 500,000 charge/discharge cycles
  • Patented CAP energy management technology
    • Extended emergency power supply in the event of an unexpected power outage
    • Monitoring of energy and power consumption to strategically extend operating time for safe system shutdown
  • EN 50155 and EN 45545 certification
Product information "PB-9250J-110V "

The PB-9250J-110V from Neousys is a newly designed SuperCAP UPS module with a 110 V DC input, tailored for the rapidly growing railway applications segment. The PB-9250J-110V features eight 370F supercapacitors that store 9,250 watt-seconds of energy, providing valuable backup power to backend systems for seconds and minutes in the event of a power outage. Unlike traditional UPS systems with conventional batteries, supercapacitors enable operation across a wide temperature range and offer a long lifespan of up to 10 years. The Neousys PB-9250J-110V remains operational at temperatures from -40 °C to 70 °C, ensuring reliability over an extended period.

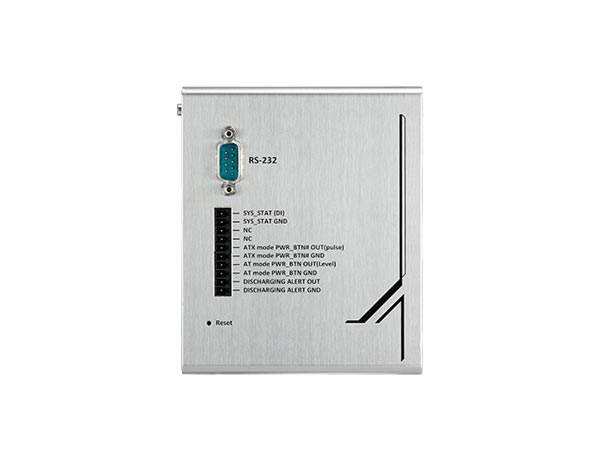

Thanks to Neousys' patented CAP energy management technology, the PB-9250J-110V offers advanced features such as real-time monitoring of energy consumption, over and under-voltage protection, as well as automatic and manual control of the main switch. The module automatically manages startup and shutdown processes, ensuring your system operates smoothly even with unstable power sources. Additionally, the module includes extra digital output channels to display system status, such as charging or discharging, and to control the main switch.

While computer systems are widely used in various railway applications, electrical stability remains a critical issue for rail vehicles, essential for system reliability. The PB-9250J-110V effectively protects computers and other equipment during power outages, such as when a train passes through a level crossing or switches tracks. Moreover, the EN 50155 and EN 45545 certified PB-9250J-110V can be easily installed alongside existing railway onboard electrical equipment or integrated into the power supply system.

Technical details

Energy capacity: 9250 watt seconds
