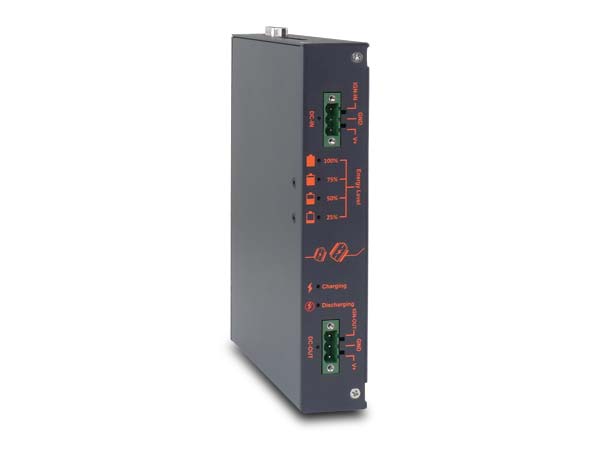

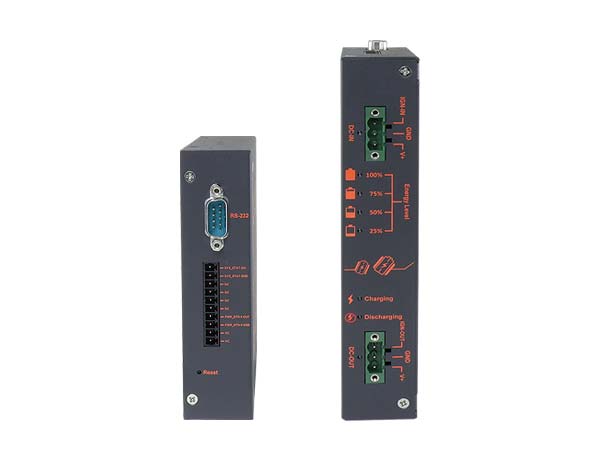

PB-2580J-SA

Features

  • Compatible with all Box PCs
  • Equipped with supercapacitors, with a wide operating temperature range from -25°C to 65°C
  • Energy capacity of up to 2,580 watt-seconds
  • Maximum output power of 70 W for the connected backend system
  • Service life of over 10 years or 500,000 charge/discharge cycles
  • Patented CAP energy management technology*
  • Extended backup power in the event of an unexpected power outage
  • Energy and power consumption monitoring to extend operating time and safely shut down the system
  • Various operating modes:
    • Backup power mode
    • Ignition control mode for standard Box PCs and automotive controllers
Product information "PB-2580J-SA"

PB Series – Reliable Backup Power Solution for Your Box PC Systems

The PB series from Neousys offers a standalone backup power module that protects your Box PCs from unexpected power outages. Equipped with cutting-edge supercapacitor technology, the module remains operational in extreme environments with temperatures ranging from -25°C to 65°C – and for more than 10 years.

The models PB-9250J-SA, PB-4600J-SA, and PB-2580J-SA feature high-capacity supercapacitors that store 9,250, 4,600, and 2,580 watt-seconds of energy respectively. This ensures extended system uptime and protects your systems from data loss.

Thanks to Neousys' patented CAP energy management technology, the module can reliably supply up to 70 W of power to the backend system and automatically manage system startup and shutdown without the need for additional drivers or software. In addition to the primary operating mode, where the module functions like a UPS, it also offers two extended modes with ignition control for automotive applications.

The PB-2580J-SA can be used with standard Box PCs or automotive controllers to provide a stable power supply or user-configurable delays for power-on and power-off via the ignition signal input.

With its versatile operating modes, automatic shutdown control, and up to 70 W output power, the PB series modules are compatible with most Box PCs on the market. Its features, such as maintenance-free energy storage and uninterruptible power supply, make the PB series ideal for preventing data loss in harsh industrial environments in the event of a power failure.

pb-2580j-sa Einsatzmglichkeiten.gif

Technical details

Energy capacity: 2580 watt seconds
Downloads
