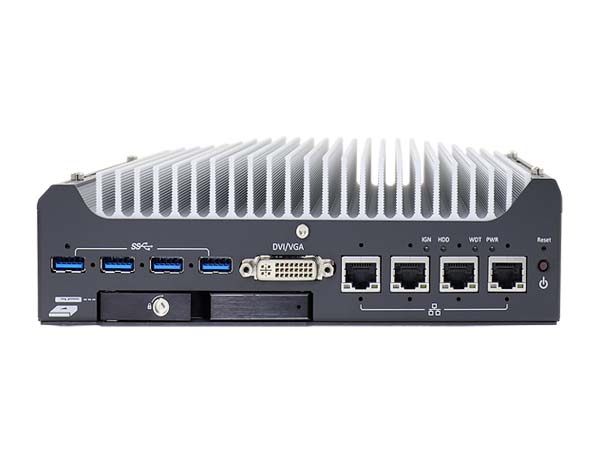

Nuvo-7531
Lüfterloser, kompakter Industrie PC mit Intel® 9./8. Gen Core™ CPU sowie 4 GbE- und DIO
Eigenschaften
- Intel® 9th/8th Gen Core™ CPU
- Up to 32GB DDR4-2666 SDRAM
- 4x USB 3.1, 2x USB 2.0, DVI-I, VGA, 2 serial ports
- 4x Gigabit Ethernet
- 1x 2.5" SSD and 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- Fanless operation and space-saving low-profile design
- Certified to MIL-STD-810G, EN62368-1, EN 55032, and EN 55024
The Nuvo-7531 is one of the most compact fanless embedded controllers that supports Intel® 8th/9th Gen Core™ CPUs. With its small dimensions of 212 x 165 x 63 mm, this computer fits into even the tightest spaces. Despite its small size, the Nuvo-7531 offers uncompromised performance. Supporting Intel® 8th/9th Gen Core CPUs with 35/60 watts, this computer provides 50% additional performance compared to the previous platform. The Nuvo-7531 is a compact and powerful embedded controller for various industrial applications.
The Nuvo-7531 is equipped with numerous I/O functions. It has four GbE and four USB 3.1 ports, allowing the connection of multiple GbE and USB cameras. A hot-swappable hard drive bay allows for storage changes without shutting down the system or opening the case. The controller is expandable via three Mini-PCIe sockets, which can be used to install modules for 3G/4G or Wi-Fi for wireless data exchange. Additionally, the Nuvo-7531 offers 8-channel DIO, 2 COM ports, and two monitor outputs, making it suitable for various applications.
The Nuvo-7531 offers impressive computing power for such a compact embedded controller and is equipped with numerous I/O functions. The controller is suitable for a wide range of industrial applications, especially in tight spaces. The Nuvo-7531 is a small giant among robust embedded controllers.
Technische Details
| Arbeitsspeicher: | 1x DDR4 Slot |
|---|---|
| Arbeitsspeicher Kapazität: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Audio: | 1x 3,5mm Klinke für Mikrofon und Lautsprecher |
| Befestigung: | DIN-Rail Halterung (optional), Wandhalterung |
| Betriebssystem: | Linux, Windows 10, Windows 10 IoT |
| Betriebstemperatur: | -25°C ~ 60°C |
| CPU: | Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 8. Generation, 9. Generation |
| CPU Sockel: | LGA1151 |
| Chipsatz: | Intel® H310 |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Erweiterungen: | Full-size Mini PCIe, M.2 2280 M key, SIM Socket |
| Ethernet: | Gigabit |
| Fernsteuerung: | 10-Pin Wafer Connector (Remote On/Off Control & Status LED Output) |
| Festplatte: | 2,5" SSD, M.2 2280 NVME |
| Feuchtigkeit: | 10% ~ 90% (nicht kondensierend) |
| Interne Grafik: | Intel® UHD Graphics 630 |
| Netzwerkschnittstellen: | 1x, 2x, 3x, 4x |
| Serielle Schnittstellen: | RS-232, RS-422, RS-485 |
| Stromanschluss: | 3-Pin Phoenix Klemme |
| Stromversorgung: | 8 ~ 35V DC |
| TPM: | fTPM 2.0 |
| USB: | USB 2.0, USB 3.1 Gen 1 |
| USB-Anschlüsse: | 1x, 2x, 3x, 4x, 5x, 6x |
| Video: | DVI-I, VGA |
| Zertifizierung: | CE/ FCC Class A, according to EN 55032 & EN 55024, EN62368-1, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
